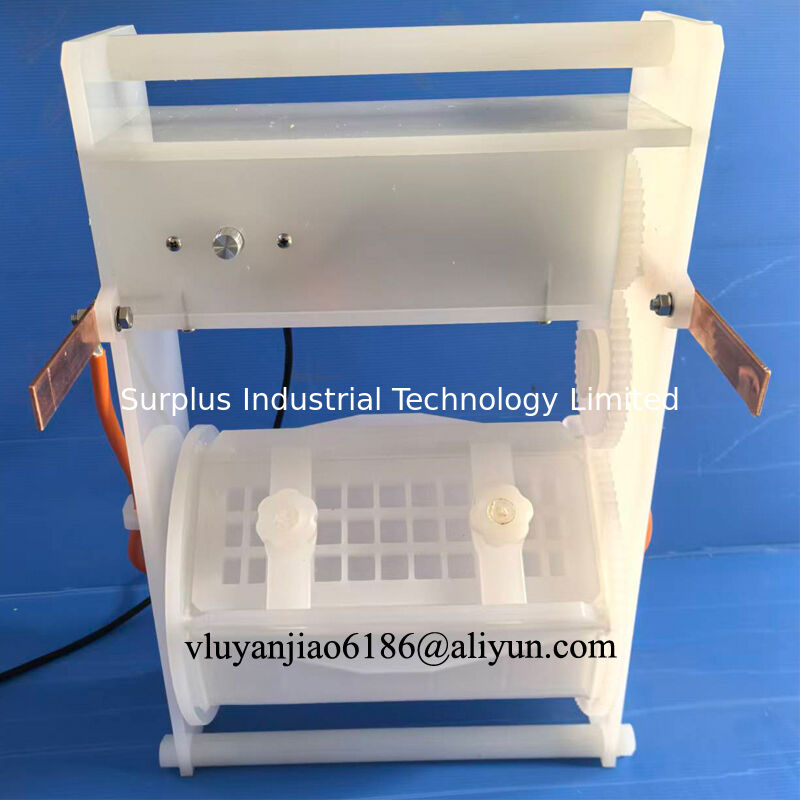

Mini PP Electroplating Barrel For Barrel Zine Copper Plating Machine Line

The shape of the drum is usually hexagonal and round, and the large drum is octagonal. In terms of part turning uniformity, the hexagonal shape is superior to the round shape, especially when the loading volume does not exceed 1/2 of the volume. Round drums are easy to manufacture and have 21% more charge volume than hexagonal drums when the dimensions are the same. When the inner circle diameter of the drum is greater than 420 mm, an octagonal drum should be used so that the radius difference between the inner circle and the outer circle is smaller to facilitate stable conductivity. When it is often necessary to roll plating two different parts at the same time, the drum can be divided into two sections, becoming the left and right two cells.

The hole in the cylinder wall is for smooth conduction of current between the cathode and the anode, while forming a channel for convection of the solution. The shape of the open hole is round, square and rectangular holes. When processing with plastic sheet, the hole diameter should be selected according to the size of the part. Round holes can be drilled at any time according to the product size on new drums that have not been drilled before, which is more convenient, while square holes, rectangular holes or other special shaped openings should be pre-determined when manufacturing the drums to determine the shape and size of the hole and order the finished porous plate as planned. The open area of the round hole is larger than the square hole and rectangular hole in terms of the percentage of heat generation in the cylinder wall area. At the same time, due to the increase of open area, it can reduce the loss of solution carried out during barrel plating and reduce the load and cost of waste water treatment facilities. Reduce the tank voltage during barrel plating, reduce the temperature rise of the solution, etc., which helps to reduce the cost of barrel plating and improve the economic and environmental benefits of the enterprise.

For round hole drums, when the minimum diameter of the plated part is 1.8mm, small holes perpendicular to the cylinder wall are generally used, and the diameter of the holes can be slightly larger. The number of holes should be as many as possible to ensure the strength and rigidity of the drum. The position of the two rows of holes are staggered on each other, and a positive triangular arrangement is preferred. When the hole diameter exceeds 5 mm, the center distance of the hole should not be too large, otherwise the parts will be prone to local scorching and dotted patterns when working under high current density.

More Products:

Manual barrel plating production line can be plating for zinc,copper,gold,nickel etcelectroplating anode oxidation.
It has characteristics of small volume,easy operation,low covering area and low price,and it also has provided some
electronics factory and some plating needed company with great convenience.

Characteristics:

●Made in polypropylene and corrosion resistence to high temperature;
●Simple and convenient manual operation and excellent performance;
●Suitable for small batch production of small workpieces and hanging up and down materials;
●Small covering area and low price;
●This kind of production is fit for hardware and electronic etc industry and it can be controlled its process flexibly;
●Driven by motor and worm gear speed reducer,the speed is 6-30R/min(Adjustable speed).


SPECIFICATION OF ELECTROPLATING EQUIPMENT:
1. High quality raw material : 10--15mm PP / PVC plate (Welcome customized )
2. Anti-corrosion and resistant machinery frame and Crane lifting : Steel body and Epoxy painting.
3. Main equipment model :
(1) According to plating method : Barrel plating and Hang plating
(2) According to Control system : Portable equipment ; Manual plating line ; Semi-automatic plating line ; Full-automatic line .
(3) According to application : Zinc plating ; Nickel plating ; Chrome plating ; Copper plating ; Gold plating ; Anodizing and etc.
4. Welcome customized : the electroplating line is non-standard , it is designed according to your products information .
5. Testing before delivery :
(1) Anti-leakage testing : We will fill the tanks with water after welding and before installation , the testing time last 72 hours .
(2) Runing testing : We will installed the equipment and operate it . Meantime , we will take the testing videos to the customer to confirm it .
6. Guarantee : one year ( We will replace the external equipment for free except the human damaged )
7. We are factory .We have the best price .
8. We have Export license , we can export to your area directly .
9. Surrounding equipments :

Packing & Shipping
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive


Company Advantage:

1. Professional,Powerful, Precision Design

• Factory scale: 18 years of experience in electroplating equipment manufacturing, with a production base of 5182 square meters, factory direct sales, reducing customer costs.
• Processing equipment: 20 sets of bending machines, engraving machines, wire cutting machines, processing machine tools and other machinery to ensure the quality of customized equipment.
• Customized production capacity: The annual production capacity of electroplating equipment can reach 24 sets, and the customized equipment can be supplied in a timely manner with strong strength.

2. Build a quality levee to meet the challenges of the century

• Exquisite craftsmanship: simple and flexible operation, stable operation, easy to manage, low mechanical failure rate, high use efficiency
• Superior quality: The equipment adopts materials from well-known brands in Japan, Taiwan and China to ensure stable and durable equipment quality
• Strict quality inspection: repeated testing of equipment after on-site installation to ensure equipment stability and equipment quality


3. Focus on research and development for 18 years, master core technology

• R&D team: Engineers have more than 18 years of experience in the electroplating industry, and continuously improve the quality of equipment to provide technical assurance
• R&D strength: By increasing investment in science and technology, improving the level of R&D, now we have advanced technology R&D and design capabilities in the industry


4. Quality and Thoughtful Service

• The engineer answers online, and the salesman's response time does not exceed 4 hours.
• Quick quote



Related Product Show



1. Automatic Barrel plating production line

2. Automatic rack plating production line

Application: large-scale surface treatment of metal parts such as machinery, automobiles, military industry,electronics and ABS

non-metal parts, suitable for zinc plating, chrome plating, nickel plating, copper plating and other processes.



3. Precision roller

Application range:Small batch surface treatment of metal parts such as precision military electronics, suitable for nickel plating,

gold plating, tin plating, copper plating and other processes
