Product Details:
Payment & Shipping Terms:
|
Name: | High Frequency Polarrity Reverse IGBT Plating Rectifier For Electro Chrome Plating With Copper Bar | Input Voltage: | 3 Phase, 380 V/420 V, 50~60 Hz |
---|---|---|---|
Output Voltage: | 12V | Output Current: | 0~2000 A (Random Optional) |
Voltage Stability: | ≤1% | Efficiency: | ≥90% |
LCD Display Contents: | Touch Panel HMI, Including Communication Status, DC Output And Voltage, Current Ampere Hour Counting, Timer Counting , Running Mode, Running Status Display Etc. | Cooling System: | Air Cooling |
Control Method: | PLC | Operating Temperature Of Plating Solution (tank): | Approximate 60 |
Highlight: | Polarity Reverse Plating Rectifier,Electro Chrome Plating Rectifier,IGBT Electroplating Rectifier |

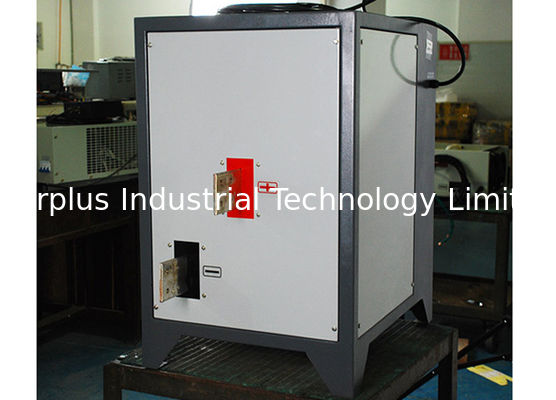

Rectifier For Electro Chrome Plating With Copper Bar

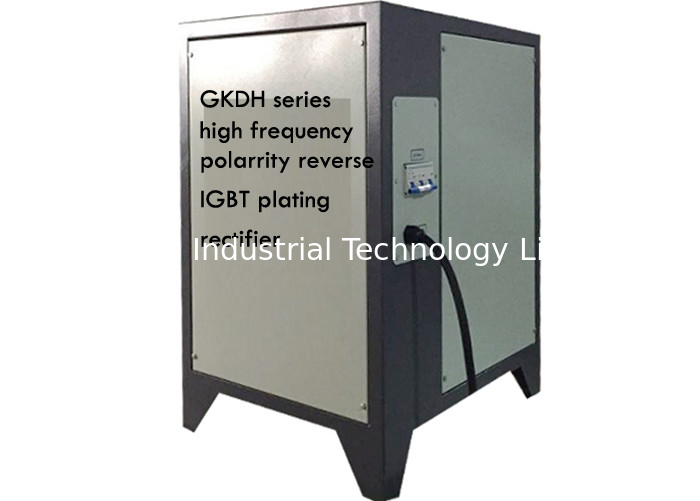

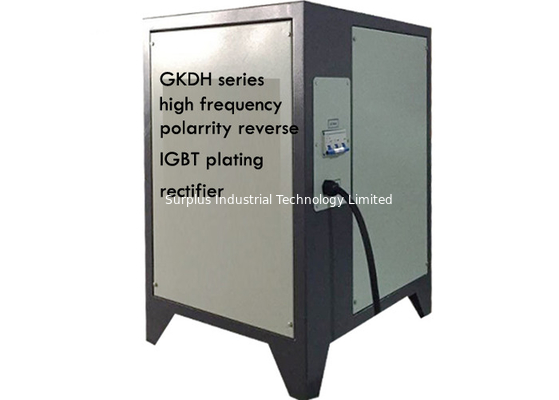

GKDH series high frequency polarrity reverse IGBT plating rectifier
Name of the Item: Rectifier for Electro Chrome Plating with all standard and additional accessories as per specification
below
Specifications:
b. Model: GKDH12-2000CVC
c. Input voltage: 3 Phase, 380 V/420 V, 50~60 Hz
d. Output voltage: 12V
e. Output current: 0~2000 A (Random Optional)
i. Voltage stability: ≤1%
j. Current stability:≤1%
f. Ripple factor: 1%~2%
j. Efficiency:≥90%
k.Stabilization mode: cc/cv
l. Adjustment range: Voltage/Current from 0 100% continuously adjustable within rated range
m. Cooling system: air cooling
n. Control method: PLC
p. LCD display contents: Touch panel HMI, including communication status, DC output and voltage, current ampere hour counting, Timer counting , running mode, runningstatus display etc.
q. Protection method: Input over voltage/under voltage Over current, Output short over heating self protection
r. Operating temperature of plating solution (tank) : approximate 60
s. Ambient temp:30-45°C
t. Ambient humidity: ≤90%
u. Timer capacity : (Hrs, Min ,Sec) and minimum 12 hours with retentive memory during power failure/interruption
v. Polarity change system : Automatic Forward/ Reverse by Timer.
w. Others: Transmission bar (Copper). qty 02 per
rectifier (dimension LxWxH= 100*59*113cm
Country of Origin: China
Condition:
a. Trial run will be done by the supplier at factory site.
b. All kinds of additional attachments, connections and
necessary accessories needed for running the
rectifier must be supplied.
c. 03 (Three) years service support after warranty period.
d. 02 x Operation & Maintenance manual in English to be
supplied with the rectifier.
e. Warranty for 01 (one) year after acceptance
FAQ
1. How can I get an offer?
You can send your drawing with technology requirements and mark your purchase quantity of the product you need.It is much better if you could offer the usage information about products.
We will comfirm the most suitable material and quote our best price to you in 24 hours.
2. Can you accept OEM & ODM?
Yes,we can produce the products according to your demand and drawing.
3. What is your production lead-time for order?
Generally it takes 15-25 days for production.
4. What are your payment terms?
In generally,we quote EXW price+shipping cost,payment 50% deposit by T/T in advance,50% balance paid before shipment.
If the account is small ,so you can pay via Western Union.
Products Show
1. Automatic Barrel plating production line
2. Automatic rack plating production line
Application: large-scale surface treatment of metal parts such as machinery, automobiles, military industry,electronics and ABS
non-metal parts, suitable for zinc plating, chrome plating, nickel plating, copper plating and other processes.
3. Precision roller
Application range:Small batch surface treatment of metal parts such as precision military electronics, suitable for nickel plating,
gold plating, tin plating, copper plating and other processes
Project display
![]() |
![]() |
![]() |
![]() |
Packing & Shipping
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, much more expensive
By Express: more flexiable, door to door, a little bit expensive
