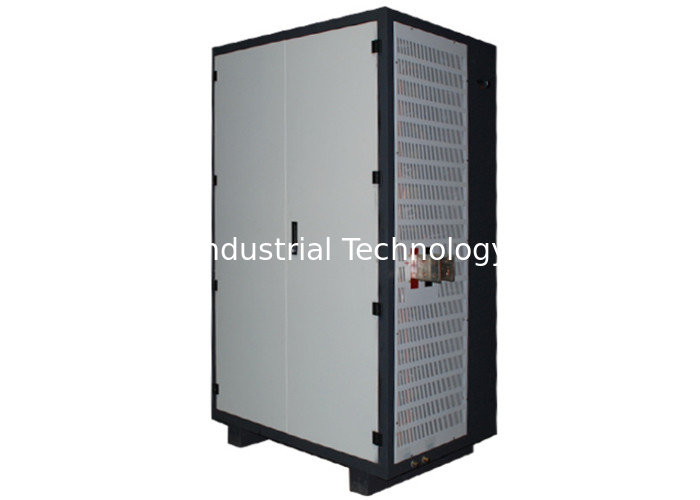

High Accuracy DC Power Supply Electroplating Rectifier , Metal Plating Rectifier

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: Rec-003
Minimum Order Quantity: 1pcs
Price: according the specification
Packaging Details: wooden case
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month
Detail Information
Name: GKD Series High Power DC Power Supply Input Voltage: 3xAC220V/380V±10%,50/60Hz
Output Voltage: 0-800vdc, Customized; Output Current: 0 - 300A(Over 300A See Page 13)
Switch Mode: MOS Tube Insulation Resistance: Input-output / Input-shell / Output-shell: ≥ 5m Ω
Cooling Mode: Air Cooled Or Water Cooled
High Light:

DC Power Supply Electroplating Rectifier

,

high accuracy Electroplating Rectifier

,

DC Power Supply metal plating rectifier


Product Description

GKD series high power DC power supply



Application

Metal plating, plastic plating, electrolytic copper foil, chrome plating,aluminum profile oxidation, Rare earth smelting, tinplate galvanizing,
water treatment and other industries;



Features:

1. Small size, light weight, electricity-saving, high accuracy;
2. Very low ripple coefficient, high control accuracy and better electroplated
coating uniformity;
3. Constant current and voltage operation mode, free switching
4. Electronic switcher for positive and negative switching, with fast response
time, less than 100ms;
5. Equipped with RS232 & RS485 interface;(Optional)
6. 4-20mA, 0-5V, 0-10V analog(optional)
7. PROFIBUS, DeviceNet, modbus(optional)
8. Built in ampere hour meter function;
9. With over temperature, over voltage, under voltage, overload, short circuit
protection function;
10. Sealing structure design, with the use of acid and alkali proof waterproof
function- three anti paint, make the product more durable



Technical parameters:

Input voltage

3xAC220V±10%,50/60Hz

3xAC380V±10%,50/60Hz

Other voltages can be customized as required

Power factor  ≥0.95
Output Voltage 0-800vdc, customized;
Cooling mode Air cooled or water cooled
Output Current  0 - no upper limit(manual 20000A maximum)
Insulation resistance Input-output / input-shell / output-shell: ≥ 5m Ω
Rated efficiency 90% type
Load capacity  No fault during 72 hours of full load operation
RoHS compliance conformity with EU Directive 2011/65/EU
Safety standards conformity with EU 2006/95/EC,2004/108/EC
Degree of Protection Air cooling IP33, water cooling IP43 or 66



FAQ



1. How can I get an offer?

You can send your drawing with technology requirements and mark your purchase quantity of the product you need.It is much better if you could offer the usage information about products.

We will comfirm the most suitable material and quote our best price to you in 24 hours.



2. Can you accept OEM & ODM?

Yes,we can produce the products according to your demand and drawing.



3. What is your production lead-time for order?

Generally it takes 15-25 days for production.



4. What are your payment terms?

In generally,we quote EXW price+shipping cost,payment 50% deposit by T/T in advance,50% balance paid before shipment.

If the account is small ,so you can pay via Western Union.



Products Show



1. Automatic Barrel plating production line

Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 0

2. Automatic rack plating production line



Application: large-scale surface treatment of metal parts such as machinery, automobiles, military industry,electronics and ABS

non-metal parts, suitable for zinc plating, chrome plating, nickel plating, copper plating and other processes.



Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 1



3. Precision roller

Application range:Small batch surface treatment of metal parts such as precision military electronics, suitable for nickel plating,

gold plating, tin plating, copper plating and other processes



Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 2



Project display



Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 3
Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 4
Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 5
Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 6



Packing & Shipping

In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.



As for shipment,different ways have their own advantage and disadvantage:

By sea: the cheapest,suitable for large amounts,but take more time

By Air: faster, more convenient, much more expensive

By Express: more flexiable, door to door, a little bit expensive
