Water Cooled Gold Plating Rectifier , DC Rectifier For Electroplating Indoor Use

Certification
China Surplus Industrial Technology Limited certification
Customer Reviews
The heaters and the rectifier working great!

—— David

I'm Online Chat Now

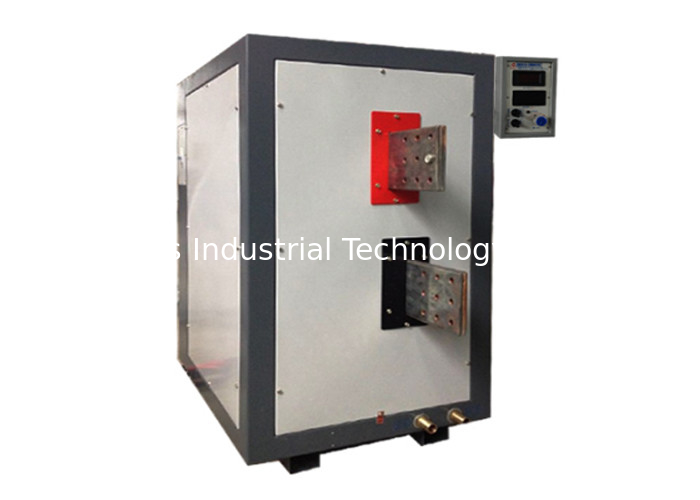

Water Cooled Gold Plating Rectifier , DC Rectifier For Electroplating Indoor Use

Water Cooled Gold Plating Rectifier , DC Rectifier For Electroplating Indoor Use
Water Cooled Gold Plating Rectifier , DC Rectifier For Electroplating Indoor Use

Large Image :  Water Cooled Gold Plating Rectifier , DC Rectifier For Electroplating Indoor Use

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: Rec-007
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: according the specification
Packaging Details: wooden case
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month

Water Cooled Gold Plating Rectifier , DC Rectifier For Electroplating Indoor Use

Description
Name: Water Quality Requirements Water Cooled Electroplating Rectifier Input Voltage: 3xAC220V/380V±10%,50/60Hz
Output Voltage: 0- 250vdc, Customized; Output Current: 0 -500Adc,
Insulation Resistance: Input-output / Input-shell / Output-shell: ≥ 5m Ω Cooling Mode: Air Cooled Or Water Cooled
High Light:

Water Cooled Gold Plating Rectifier

,

Indoor Use gold plating rectifier

,

Water Cooled dc rectifier for electroplating

Water Quality Requirements Water Cooled Electroplating Rectifier


Cooling water temperature :19-25℃
Maximum water temperature 30℃(Limited power use)
Temperature difference between inlet and outlet water AboutΔ7℃
Limited power use :When the inlet water temperature is higher than 25 ℃, the power will be reduced by 3% for every over 1 ℃
Range of inlet water pressure: 2-6 bar
conductivity: 180 –220S/cm
PH Value : 7-8
Water source requirement:
Deionized water or pure water shall be used, closed circuit is required, and non closed circuit water sources such as water
tower shall not be used



Installation Requirements

Place requirement:  Indoor use only
Air circulation : Air circulation, no heat accumulation
Grounding requirements :Forced grounding of equipment
Filter cotton :It cannot be blocked. It is recommended to wash once a week
Storage temperature: -20 to 45℃
Work temperature: -10 to 35℃
relative humidity :15% - 85%, no condensate


Maintenance space:
At least 50cm should be left at the front and back of the air inlet and outlet of the rectifier, at least 15cm left and right,
and at least 50cm at the top


Air flow direction:
For air-cooled models, when multiple rectifiers are installed, the hot air of the front rectifiers cannot be directly
blown into the air inlet of the rear Rectifiers

FAQ

1. How can I get an offer?
You can send your drawing with technology requirements and mark your purchase quantity of the product you need.It is much better if you could offer the usage information about products.
We will comfirm the most suitable material and quote our best price to you in 24 hours.


2. Can you accept OEM & ODM?
Yes,we can produce the products according to your demand and drawing.

3. What is your production lead-time for order?
Generally it takes 15-25 days for production.


4. What are your payment terms?
In generally,we quote EXW price+shipping cost,payment 50% deposit by T/T in advance,50% balance paid before shipment.
If the account is small ,so you can pay via Western Union.


Products Show


1. Automatic Barrel plating production line

Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 0
2. Automatic rack plating production line


Application: large-scale surface treatment of metal parts such as machinery, automobiles, military industry,electronics and ABS
non-metal parts, suitable for zinc plating, chrome plating, nickel plating, copper plating and other processes.



Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 1



3. Precision roller

Application range:Small batch surface treatment of metal parts such as precision military electronics, suitable for nickel plating,

gold plating, tin plating, copper plating and other processes



Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 2



Project display



Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 3
Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 4
Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 5
Manual Precious metal Plating Electroplating Plant Equipment For High-precision Electronic Products 6



Packing & Shipping

In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.



As for shipment,different ways have their own advantage and disadvantage:

By sea: the cheapest,suitable for large amounts,but take more time

By Air: faster, more convenient, much more expensive

By Express: more flexiable, door to door, a little bit expensive
