Product Details:
Payment & Shipping Terms:
|
| Name: | GKDH Series Small Type High Precision DC Power Supply With Reverse | Input Voltage: | 3xAC220V/380V±10%，50/60Hz |
|---|---|---|---|
| Output Voltage: | 0-500vdc, Customized; | Output Current: | 0 - 300A(Over 300A See Page 13) |
| Switch Mode: | MOS Tube | Insulation Resistance: | Input-output / Input-shell / Output-shell: ≥ 5m Ω |
| Cooling Mode: | Air Cooled Or Water Cooled | ||
| High Light: | Electroplating Rectifier With Reverse,500VDC Electroplating Rectifier,500VDC plating rectifier |
||

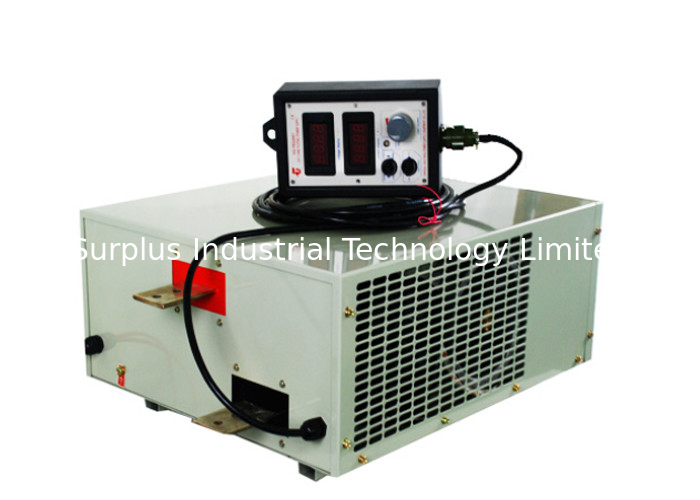

GKDH Series Small Type High Precision DC Power Supply With Reverse
Application
The products are mainly used in precious metal plating, small hard chromium plating, laboratory and other surface treatment processes
with high requirements.
Features:
1. Single cabinet,adopt DC contactor achieve the polarity reverse function ;
2. Automatic reverse or manual reverse model;
3. Constant current and voltage operation mode, free switching
4. Electronic switcher for positive and negative switching, with fast response time, less than 100ms;
5. Equipped with RS232 & RS485 interface;
6. 4-20mA, 0-5V, 0-10V analog(optional)
7. PROFIBUS, DeviceNet, modbus(optional)
8. Built in ampere hour meter function;
9. With over temperature, over voltage, under voltage, overload, short circuit protection function;
10. Sealing structure design, with the use of acid and alkali proof waterproof function- three
anti paint, make the product more durable;
Technical parameters:
| Input voltage |
3xAC220V±10%,50/60Hz 3xAC380V±10%,50/60Hz Other voltages can be customized as required |
| Power factor | ≥0.95 |
| Output Voltage | 0-500vdc, customized; |
| Cooling mode | Air cooled or water cooled |
| Output Current | 0 - 300A(Over 300A see page 13) |
| Switch mode | MOS tube |
| Output waveform | Customizable |
| Insulation resistance | Input-output / input-shell / output-shell: ≥ 5m Ω |
| Rated efficiency | 90% type |
| Load capacity | No fault during 72 hours of full load operation |
| RoHS compliance | conformity with EU Directive 2011/65/EU |
| Safety standards | conformity with EU 2006/95/EC,2004/108/EC |
| Degree of Protection | Air cooling IP33, water cooling IP43 or 66 |
FAQ
1. How can I get an offer?
You can send your drawing with technology requirements and mark your purchase quantity of the product you need.It is much better if you could offer the usage information about products.
We will comfirm the most suitable material and quote our best price to you in 24 hours.
2. Can you accept OEM & ODM?
Yes,we can produce the products according to your demand and drawing.
3. What is your production lead-time for order?
Generally it takes 15-25 days for production.
4. What are your payment terms?
In generally,we quote EXW price+shipping cost,payment 50% deposit by T/T in advance,50% balance paid before shipment.
If the account is small ,so you can pay via Western Union.
Products Show
1. Automatic Barrel plating production line
2. Automatic rack plating production line
Application: large-scale surface treatment of metal parts such as machinery, automobiles, military industry,electronics and ABS
non-metal parts, suitable for zinc plating, chrome plating, nickel plating, copper plating and other processes.
3. Precision roller
Application range:Small batch surface treatment of metal parts such as precision military electronics, suitable for nickel plating,
gold plating, tin plating, copper plating and other processes
Project display
|
|
|
|
Packing & Shipping
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, much more expensive
By Express: more flexiable, door to door, a little bit expensive
