PFA / PTFE Immersion Tank Heater For Chemical Plating Processing

China Surplus Industrial Technology Limited certification
The heaters and the rectifier working great!

—— David

I'm Online Chat Now

PFA / PTFE Immersion Tank Heater For Chemical Plating Processing

PFA / PTFE Immersion Tank Heater For Chemical Plating Processing
PFA / PTFE Immersion Tank Heater For Chemical Plating Processing
video play

Large Image :  PFA / PTFE Immersion Tank Heater For Chemical Plating Processing

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T030
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month
Detailed Product Description
Product Name: White PFA/PTFE Fence Chemical Immersion Plating Process Tank Heaters For Heating Fluid Baths Power Source: Electric
Voltage: 120-600V Certification: ISO9001 CE
Warranty: 1 Year Tube Material: PTFE
Application: Semiconductor,pharmaceutical,and Biomedical Industries Dimension: Customized
Use In Tank Material Of: PVDF,PFA,or Quartz
Highlight:

PTFE Immersion Tank Heater

,

PFA Immersion Tank Heater

,

Chemical Plating Processing PTFE Immersion Heater

White PFA/PTFE Fence Chemical Immersion Plating Process Tank Heaters For Heating Fluid Baths



Overview

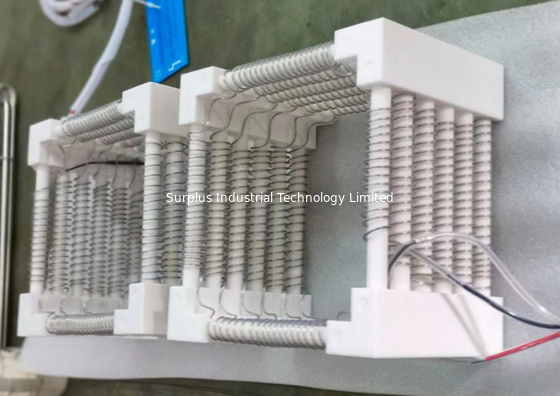

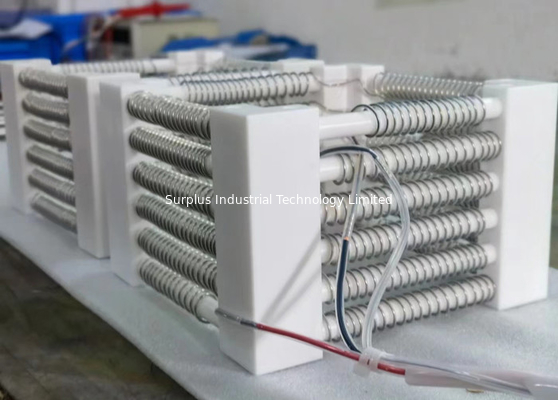

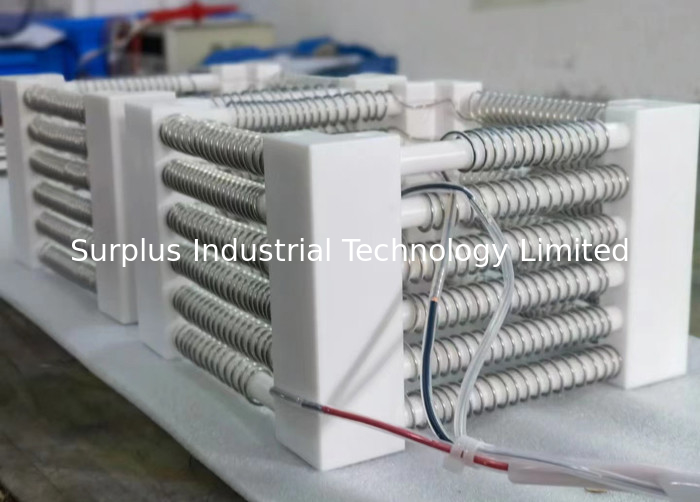

Customized PTFE Fluoroethylene Frame immersion tank heaters are great for heating fluid baths to a constant temperature.

These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries.

First of all, these immersion heaters provide clean heat evenly and efficiently.

Furthermore, they’re compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals.

Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz.

Please contact us with inquiries about other tank materials



These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW.

They feature a low watt density (≤ 4 watts/in²) for a fast heating response.

These heaters integrate easily into most process tanks.

Provide us with your specifications and tank size, and let us build an immersion heater for you.



To properly size an electric immersion heater, we need to know the following:

  • Type of chemistry being heated (application and concentration)
  • Tank dimensions and solution height (L” x W” x H”)
  • Incoming voltage (110V, 240V Single or Three Phase, 480V)
  • Heat Up Time (how long will it take for the solution to get to operating temperature)
  • Operating Temperature
  • Ventilation requirements


FAQ

Q: How often should an immersion heater be serviced?
A: It is mandatory to keep a regular maintenance schedule.

This can possibly be every two months, once in every six year and once in every year. The first check should center around observing the plumbing joints for excessive or unusual corrosion.



Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
