Product Details:
Payment & Shipping Terms:
|
| Name: | Oxidized Ruthenium Titanium Anodes | Technique: | Acid Washing |
|---|---|---|---|
| Coating: | Rutheium Iridium Oxide | Material: | Titanium Gr2 |
| Surface Treatment: | MMO Coated | Ti Content (%): | 99% |
| Highlight: | 99% Titanium Anode,MMO coated Titanium Anode,99% platinized titanium |
||

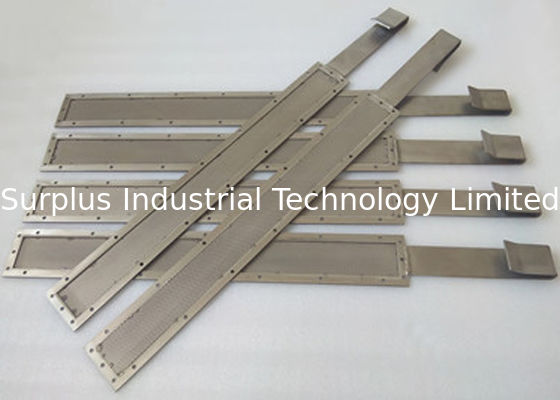

Oxidized Ruthenium Titanium Anodes
Because of a very flexible production facility, we are able to manufacture anodes of all types: sheet, plate, mesh, wire, rod, tubular or combinations and/or assemblies of these materials. Their size and number vary from several cm2 to 2 m2 and from 1 to 10,000 pieces. The process in which the anodes are used determines size, shape and coating specification of an anode.
Important parameters determining the anode design are:
The electrochemical cell or installation wherein the anodes are used
The process conditions, such as electrolyte composition, temperature, current density, design life, etc.
Mechanical load of the anode
Capacity of electrical conductivity of the base material.
All anodes are produced according to customer specifications. When these specifications are not yet completely determined, our engineers are pleased to use their knowledge and experience to finalise the design together with the customer.
| Main application areas | Anodes and coatings | Details |
| Cathodic Protection |
Titanium anode Platinised Titanium Anodes based on Niobium or Tantalum |
All round applicable At high current densities, for example in sea water High voltages or strongly corrosive electrolytes |
| Seawater electrolysis |
Titanium anode Titanium with a Ruthenium Mixed Metal Oxide coating Titanium with a Platinum-Iridium Oxide coating |
Depending on amongst others temperature and salinity |
| Electroplating |
Titanium with an Iridium Mixed Metal Oxide coating Platinised Titanium |
In highly acidic environments such as: Electro galvanising (zinc plating) Anodising of Aluminium Chromium, Nickel,Tin, etc. plating Precious metal plating Reverse pulse Copper plating Hard Chromium plating Precious metal plating |
| Water treatment |
Platinised Titanium Titanium with an Iridium Mixed Metal Oxide coating Boron-Doped-Diamond anodes |
Electro dialysis with polarity reversal Recovery of metals Oxidation and break-down of organic contaminations Higher overpotentials,amongst others for disinfection |
| Hypo chlorite & Disinfection |
Titanium with a Ruthenium Mixed Metal Oxide coating Titanium with an Iridium Mixed Metal Oxide coating Titanium with a Platinum-Iridium Oxide coating |
Depending on salinity, polarity reversal and current density |
| Synthesis reactions |
Platinised Titanium Titanium with an Iridium Mixed Metal Oxide coating Boron-Doped-Diamond anodes |
Depending on the particular reaction At higher overpotentials
|
| Hydrogen production | Nickel electrodes with a precious metal coating |
Coating process by means of exchange plating The purpose is to decrease the overpotentials |
Similar products:
Platinized Titanium Mesh
Titanium/Niobium-based platinum plated anode process, using electroplating or brush plating process,the appearance is bright silver white, with the characteristics of large anode discharge current density and long service life.
Titanium based platinum plated anode process, using electroplating or brush plating process,the appearance is bright silver white, with the characteristics of large anode discharge current density and long service life.
Platinized titanium anode production process:
1.Titanium-based platinum plating/Niobium-based platinum plating
The titanium/niobium-based platinum plating process deposits a layer of pure platinum on the titanium/niobium surface, the structure of the platinum coating is dense.
2.Titanium-based platinum brush plating/Niobium-based platinum brush plating
The titanium-based platinum brush coating process coats a layer of platinum-containing compound on the titanium base.
After high temperature sintering, a layer of platinum-containing oxide is formed on the surface of titanium, which has a loose structure.
Platinum plated anode is a good choice for noble metal plating anodes and other high oxygen evolution over potential environment.
Titanium Anode Basket
 |
|
|
FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
