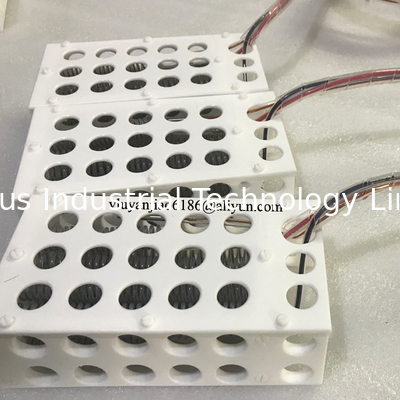

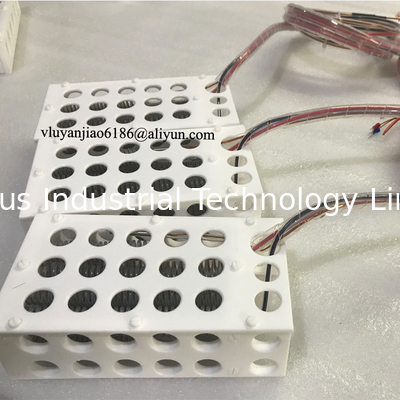

Frame Heater 110×210×60mm 230V 1P 1.5kw With J-Type Thermocouples PTFE Immersion Heater
Advantage:
1. Made of high-quality and high-quality heating wire direct package (PFA), made of imported fluoroplastics, strong corrosion resistance, non-viscous, energy-saving, environmental protection, suitable for all kinds of corrosive liquid heating.
2. Low surface power design to ensure the service life of the product.
3. The electric heater is equipped with PT1OO induction probe or thermal fuse to prolong the service life of the product and ensure the safety of the equipment.
4. Energy saving: 10% energy saving compared with heaters of the same power
5. This product has passed CE certification.
Application: Single texturing. Electronic sheet texturing, semiconductor cleaning
Features & Benefits
- Ultrapure PTFE/PFA wetted surfaces
- Reliable heating of harsh chemicals
- Maximum power in compact footprint
- Maximum 200°C heating capability
- Fast temperature response and efficiency
- Each configuration capable of various voltage-to-wattage combinations
- Integrate easily into most PVDF, PFA, and quartz wet process tanks
- Sizes for many tank dimensions
- Compact height of 1-5/8 inch
- Safety features include hi-limit sensor and encapsulated ground wire
- No N2 purge required
Optional Perforated Grids
- Top grids separate heaters from wafer carriers and components to increase the available tank space
- Bottom grids separate heaters from the tank floor
- Available for all frame sizes
- Adds 1/8 inch to height
Specifications
| Heater Element |
Heating Coil |
| Wetted Surfaces |
PFA/PTFE |
| Wattages |
1.0 – 20 kW |
| Voltages |
120 – 480 VAC
1 or 3 phase |
| Sizes (LxW) |
7x5 to 19x14 inch |
| Height |
1-5/8 inch |
| Temperature |
200°C (392°F) |
| Hi-Limit Sensor |
Type-J thermocouple |
| Ground Wire |
Encapsulated |
| Lead Wire |
15-ft |
Industries
- Semiconductor Fabrication
- Solar Cell Manufacturing
- Flat-Panel Display, LEDs & Electronics
- Chemicals Manufacturing
- Industrial Manufacturing
FAQ
Q: What are the available options?
A: • Perforated top and bottom floor grid
• Thermal cut-off sensor for 72-240°C
• PFA tubing on lead wires (10-ft)
• Additional lead wires (15-ft or 20-ft)
• Over-temperature thermocouple
• Process thermocouple
• Platinum or embedded ground wire
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
