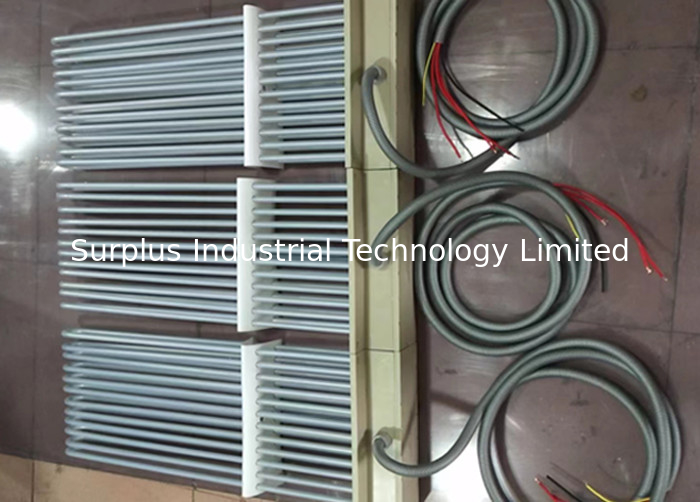

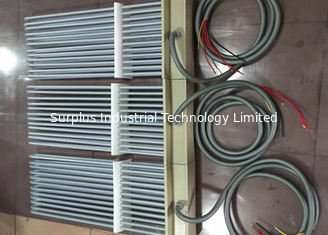

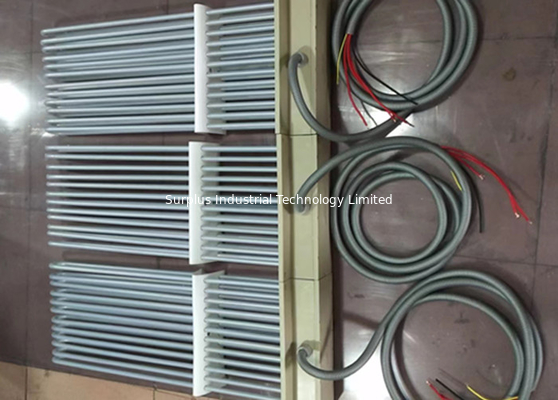

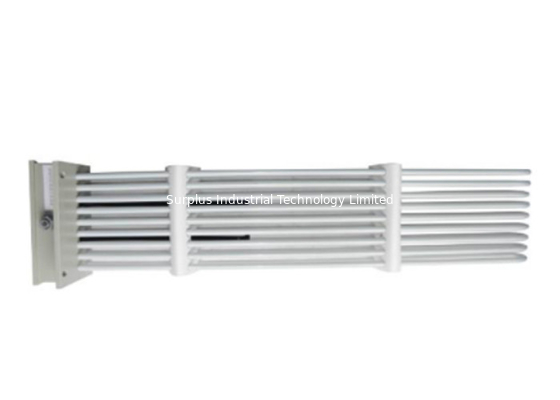

Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks

Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks
Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks
Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks

Large Image :  Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T046
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month

Twelve Element PTFE Immersion Heater 15KW For Chemical Tanks

Description
Product Name: Twelve Element PTFE Immersion Heater 15KW PTFE Heaters For Chemical Tanks Power Source: Electric
Dimension(L*W*H): Single Phase /Three Phase Voltage: 220V,380V,415V,480V
Warranty: 1 Year Material: Fluoropolymer (PTFE)
High Light:

PTFE Immersion Heater 415V

,

Chemical Tanks PTFE Immersion Heater

,

PTFE Immersion Heater 480V

Fluoropolymer PTFE Electric Immersion Heater Spiral Shape Immersion Heater

Options Available

  • Longer vertical lengths (cold zones).
  • Polypropylene guards*: recommended for applications up to 180°F (82°C).
  • Fluoropolymer (PTFE) guards recommended for chromic acid or solutions over 180°F (82°C).
  • Special configurations.
  • Longer wire and conduit lengths.
  • Lower watt densities for highly viscous solutions and technical acids.

How To Select A Chemical Solution Heater
For corrosive solutions heating, the best of heater will depend on:

  • pH value- either highly acidic or alkaline
  • Specific heat and density of the chemical solution
  • Sheath and plating tank material
  • Corrosion resistive property of the materials

Dont hesitate to contact us, we have been helping manufacturers heat dangerous chemicals for almost 50 years. Custom designed L shaped or bottom immersion heaters made of Teflon are also available.



Why am I replacing my immersion heater so often?
We've found that most of the folks we talk to who are replacing immersion heaters on a regular basis have just used stock immersion heaters that are readily available from many general industrial product distributors. Unfortunately, most of those heaters are designed for heating water or oils. Why is that unfortunate? Because many people aren't aware that immersion heaters are specific to the fluid they are intended to heat.

For a long service life from your immersion heater, you’ll need to make sure that both the heater's sheath material and the power density of the elements are appropriate for your application. (If you’re specifying an immersion heater for a new project, these considerations are equally important. It’s not required to learn what happens to poorly specified heaters by seeing it firsthand.) These specifications, of course, are in addition to finding the right wattage, which is the amount of power your heater needs to do its job.

To sum up, for the best immersion heater possible, you’ll need to do three things:
Specify the right sheath material for the fluid being heated,
Specify the right power density (that is, the watts per square inch or square centimeter), and
Specify a wattage high enough to heat your fluid to the right temperature.

FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
