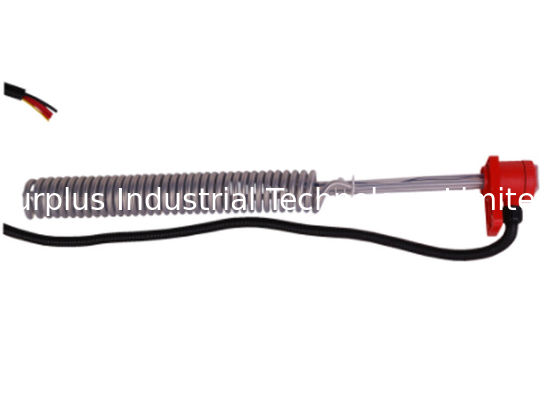

Vertical Spiral PTFE Over The Side Immersion Heater For Chemical Industry

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T002
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month
Detail Information
Power Source: Electric Dimension(L*W*H): Single Phase
Voltage: 120-600V Certification: ISO9001 CE
Product Name: Vertical Spiral PTFE Over The Side Electric Immersion Heaters For Chemical And Plating Industry Warranty: 1 Year
Material: Fluoropolymer (PTFE) Application: Chemical And Plating Industry
High Light:

Spiral over the side immersion heater

,

PTFE over the side immersion heater

,

Spiral vertical immersion heater


Product Description

Vertical Spiral PTFE Over The Side Electric Immersion Heaters for Chemical and Plating Industry

Fluoropolymer (PTFE) Heater Description :



1. USAGE: Inert to most aqueous acid, alkaline, anodizing and pickling solutions.

2. Outstanding Performance: Low wat density design( 10 watts/square inch, 1.5 w/cm2 ) for long service life.

3.Safety Heater Head: flame retardant head

4. Safety Features: all heaters matched with overheat protection switch with temperature of 95 or 105 degree Celsius or PT100 temperature sensor.

5.Certification:CE & ISO9001:2008

6.Size: 1000watts to 6000 watts.

7.Voltage:220V-480V



Install method

over-the-side immersion heater/Hot Zone should Immersed into liquid.



Power(W) Voltage(V) Hot Zone(MM) Total Length(MM)
1000 220/380/415 180 430
2000 220/380/415 310 560
3000 220/380/415 420 670
4000 220/380/415 520 770
5000 220/380/415 640 890
6000 220/380/415 750 1000



FAQ

Q: Where is Surplus located?

A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.



Q: Can I buy direct?

A: Yes,you can buy from Surplus Directly.



Q: Do you manufacture your products in house?

A: Most of our products are manufactured in-house at our factory.Some accessory items are not.



Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?

A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.



Q: What Third Party Approvals do your products carry(CE?)

A: Almost all of our products are CE compliant.



Q: How late can you ship?

A: Normally 7 days after comfirmed the order.
