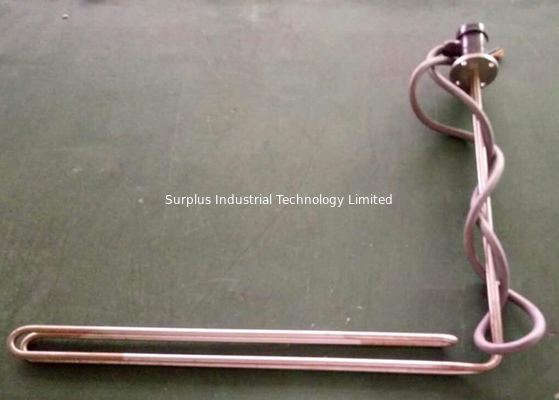

PTFE Tubular Immersion Heater Element 415V 3P 2KW

PTFE Tubular Immersion Heater Element 415V 3P 2KW
PTFE Tubular Immersion Heater Element 415V 3P 2KW
PTFE Tubular Immersion Heater Element 415V 3P 2KW PTFE Tubular Immersion Heater Element 415V 3P 2KW PTFE Tubular Immersion Heater Element 415V 3P 2KW

Large Image :  PTFE Tubular Immersion Heater Element 415V 3P 2KW

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T040
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month

PTFE Tubular Immersion Heater Element 415V 3P 2KW

Description
Product Name: PTFE Tubular Heater Element Industrial Immersion Heater Element 415V 3P 2KW Watts: 2kw(other Size Available)
Usage: Heating Various Corrosive Liquids In Plating Tanks Certification: ISO9001
Warranty: 1 Year Material: SUS316 Tubes + PTFE Tubes
Shape: L-Shaped Installation Method: Over The Side Of Bottom Tank
High Light:

PTFE Tubular Heater Element

,

415V Immersion Heater Element

,

2KW Immersion Heater Element

PTFE Tubular Heater Element Industrial Immersion Heater Element 415V 3P 2KW


Teflon heater has strong resistance to chemical corrosion,which is applicable to heat in highly destructive liquid.
Material,inside heating tube uses SUS316,outside cover PTFE from America.
All teflon immersion heater can match with PT-100, temperature fuse,or temperature switch.

Order instruction

1. show us the draft ar twork
2. the liquid is alkalinity or acid?
3. what's the highest temperature of the liquid
4. how about the size of the inside dimension of tank body?
5. what's the heigth of the liquid when it is the lowest?
6. how long is the electrical line?
7. how about the watts?
8. Is the input voltage 220V or 380V?

Application
Sheath Material
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment
Stainless Steel304 316L or Copper
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating
Stainless Steel 316L 310s or Incoloy
Light oils , In forced oil circulation loops
Stainless Steel304 316L
Light oils , In forced oil circulation loops
Stainless Steel 316L 310s or Incoloy
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water
Stainless Steel304 316L
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel
Stainless Steel304 316L


FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
