3 Phase L Shaped Fluoropolymer PTFE Bottom Heater

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T037
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month
Detail Information
Product Name: 3 Phase Bottom Heater Fluoropolymer PTFE Three Element L Shaped Heater Watts: 3kw-18kw
Usage: Heating Various Corrosive Liquids Certification: ISO9001 CE
Warranty: 1 Year Material: SUS316 Tubes + PTFE Tubes
Shape: L-Shaped Installation Method: Over The Side Of Bottom Tank
High Light:

PTFE Bottom Heater

,

L Shaped Fluoropolymer Bottom Heater

,

Fluoropolymer L Shaped Immersion Heater


Product Description

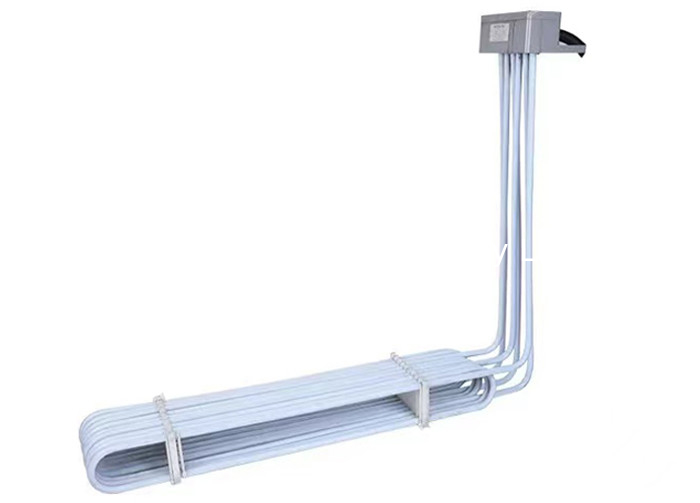

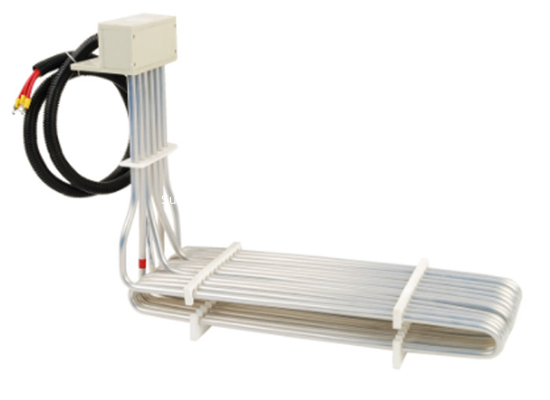

3 Phase Bottom Heater Fluoropolymer PTFE Three Element L Shaped Heater



PTFE heater is the best choice for heating, condensing, evaporating and condensing corrosive liquid such as electroplating, electrolysis, degreasing, pickling, electroless nickel plating, phosphorus plating, hydrofluoric acid, anodized aluminum, smelting, chemical industry, medicine, food, etc.

Over the side horizontal bottom position heater constructed of thick gauge metal elements covered with heavy wall fluoropolymer (PTFE).



The PTFE Jacked Three Element L Style Tubular Element Series is an Over-the-Side Bottom heater designed to offer superior performance utilizing 10 watts per square inch (1.5w/cm²) of heating capacity.



Fluoropolymer (PTFE) heaters are an excellent choice for heating Aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C). The heater head (terminal enclosure) is available in Nema 4X compliant (consult factory) or vapor tight, corrosion resistant – flame retardant polypropylene, equipped with 3 foot (.9m) corrosion resistant thermoplastic flexible conduit.



This product offers thick gauge stainless steel tubular elements covered with heavy wall fluoropolymer (PTFE) reducing permeation, eliminating the need for gas purge systems. This product is an excellent choice for heating electroless chemistries – not for use in Chromic Acid. Please refer to our Immersion Heater Solution Guide in addition to your chemical supplier for recommended outer heater sheath material.





FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive

RELATED SPECIES

  3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 0 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 1 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 2 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 3
METAL IMMERSION HEATER PTC IMMERSION HEATER QUARTZ IMMERSION HEATER
3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 4 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 5 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 6
METAL HEAT EXCHANGERS (PFA) HEAT EXCHANGERS ANODE BASKET
3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 7 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 8 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 9
PP TANKS PP BARRELS PP BAG FILTERS


OUR FACTORY

3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 10 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 11 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 12
ENGINEER OFFICE TOOLING DEPARTMENT MACHING 1
3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 13 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 14 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 15
MACHING 2 MACHING 3 MACHING 4
3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 16 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 17 3 Phase L Shaped Fluoropolymer PTFE Bottom Heater 18


Company Advantage

For more than ten years, our company has specialized in the research and development and production of PCB and FPC electroplating equipment, electric heaters, cold heat exchangers, and coating on the surface of electroplating equipment. We have collected advanced technologies and processes at home and abroad for many years. With the practice and experience in the PCB industry, the quality, stability and reliability of the products are among the world's leading positions. Our company has passed ISO9001: 2008 quality management system certification and CQC: CE certification, is in line with the world, implements scientific management, and implements international quality standards.
