Three Element PTFE Bottom Immersion Heater For Corrosive Liquids

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T019
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month
Detail Information
Watts: 3kw-18kw Usage: Heating Various Corrosive Liquids
Certification: ISO9001 CE Product Name: Three Element PTFE Bottom Electric Immersion Heaters For Heating Various Corrosive Liquids
Warranty: 1 Year Material: SUS316 Tubes + PTFE Tubes
Shape: L-Shaped Installation Method: Over The Side Of Bottom Tank
High Light:

PTFE Bottom Immersion Heater

,

Three Element Bottom Immersion Heater

,

PTFE electric immersion water heater


Product Description

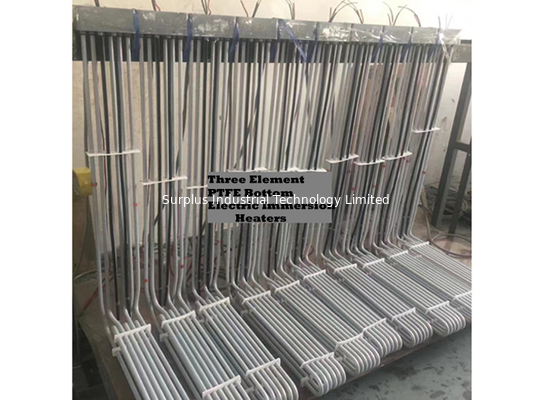

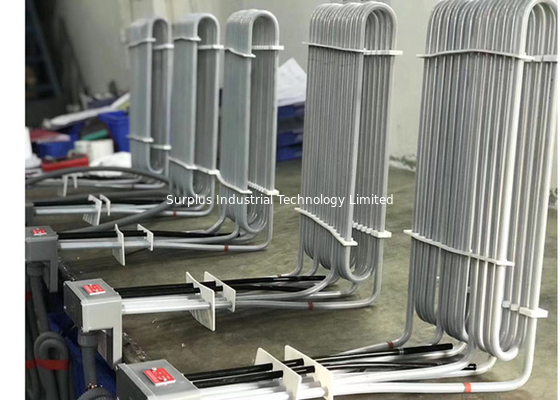

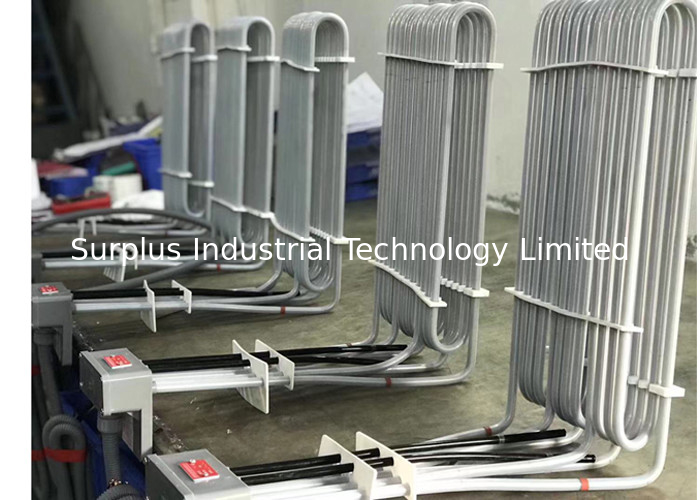

Three Element PTFE Bottom Electric Immersion Heaters For Heating Various Corrosive Liquids



PTFE heater is the best choice for heating, condensing, evaporating and condensing corrosive liquid such as electroplating, electrolysis, degreasing, pickling, electroless nickel plating, phosphorus plating, hydrofluoric acid, anodized aluminum, smelting, chemical industry, medicine, food, etc.

Heat intensity
Not exceeding 1.5w/cm2 (advisable)
Exhaust extreme (when cold)
<=0.1mA to 242 v.
Insulation (when cold)
5 Min Ohms 500 Watts minimum
Dielectric strength
1500v. 1/sec
Working temperature
1050 Deg C max.
Length tolerance
+/-1.5%
Diameter tolerance
-0.02 to -0.06 mm
Cut off connection tolerance
+/-15 mm
Power tolerance (w)
-0.05
Wattage Tolerance
+5%, -10%
Resistance tolerance
+10%, -5%
Tube diameter
Φ8.5mm-Φ22mm
Voltage and power
customized
Warranty
one year


FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive

RELATED SPECIES

  Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 0 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 1 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 2 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 3
METAL IMMERSION HEATER PTC IMMERSION HEATER QUARTZ IMMERSION HEATER
Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 4 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 5 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 6
METAL HEAT EXCHANGERS (PFA) HEAT EXCHANGERS ANODE BASKET
Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 7 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 8 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 9
PP TANKS PP BARRELS PP BAG FILTERS


OUR FACTORY

Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 10 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 11 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 12
ENGINEER OFFICE TOOLING DEPARTMENT MACHING 1
Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 13 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 14 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 15
MACHING 2 MACHING 3 MACHING 4
Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 16 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 17 Three Element PTFE Bottom Immersion Heater For Corrosive Liquids 18


Company Advantage

For more than ten years, our company has specialized in the research and development and production of PCB and FPC electroplating equipment, electric heaters, cold heat exchangers, and coating on the surface of electroplating equipment. We have collected advanced technologies and processes at home and abroad for many years. With the practice and experience in the PCB industry, the quality, stability and reliability of the products are among the world's leading positions. Our company has passed ISO9001: 2008 quality management system certification and CQC: CE certification, is in line with the world, implements scientific management, and implements international quality standards.
