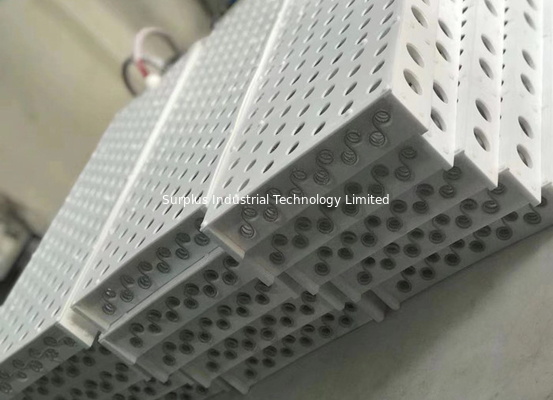

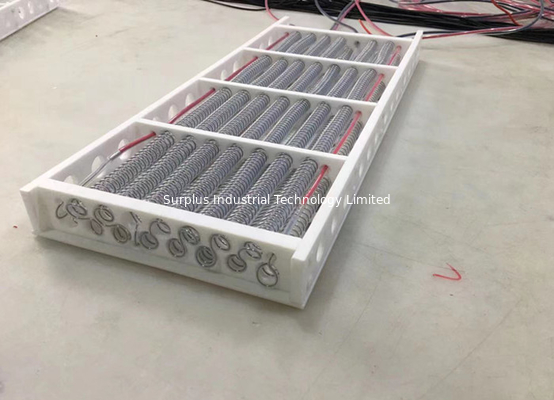

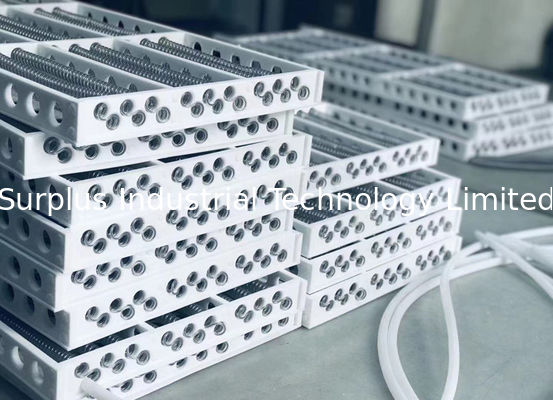

830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment

830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment
830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment
830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment

Large Image :  830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T011
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month

830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment

Description
Scope Of Application: Photovoltaic Cell,Polysilicon,Black Crystal Silicon,Wafer Cleaning Equipment,Photovoltaic,Jiejiachuang Equipment Product Name: Plate Type PTFE Industrial Process Immersion Flexible Heaters For Photovoltaic Equipment
Warranty: 1 Year Voltage: 120-600V
Material: Fluoropolymer PTFE Certification: ISO9001 CE
High Light:

830*185*40mm PTFE Immersion Heater

,

Plate Type PTFE Immersion Heater

,

830*185*40mm hot water immersion heater

Plate Type PTFE Industrial Process Immersion Flexible Heaters For Photovoltaic Equipment

PTFE heaters are the best heater choice for electroplating, electrolysis, degreasing, pickling, electroless nickel and phosphorus plating. Hydrofluoric acid, anodizing, aluminum, smelting, chemical, pharmaceutical, food and other corrosive liquid heating, condensation, evaporation and concentration.


Referential Specification List:
Power(W) Voltage(V) Dimension(MM)
4500 380 830*185*40
6000 380 830*185*40
9000 380 830*185*40
12000 380 850*300*40
15000 380 850*350*40
24000 380 700*700*40

**Can be customized according to customer requirements.

Characteristic:
1. It is made of high-quality heating wire direct coating (CPTEF), and it is made of imported raw materials such as fluorine plastic materials such as DuPont (), Japan Daikin Co., Ltd. (FLON), etc., with strong corrosion resistance, non-sticky, energy-saving, environmentally friendly, and applicable It is suitable for heating various corrosive liquids.

2. Low surface power design (<1w/c m2) to ensure product service life.

3. Attention should be paid to the installation position of the electric heater to prevent the deposits in the solution on the surface of the electric heater. If the liquid level is too low, the (PTEF) will be burned out due to poor surface heat dissipation.

4. Electric heaters are equipped with PT100 temperature probes or thermal fuse (105C) to ensure product life and equipment safety. 5. Energy saving: Compared with heaters of the same power, it can save energy by 20%.


FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive

RELATED SPECIES

  830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 0 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 1 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 2 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 3
METAL IMMERSION HEATER PTC IMMERSION HEATER QUARTZ IMMERSION HEATER
830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 4 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 5 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 6
METAL HEAT EXCHANGERS (PFA) HEAT EXCHANGERS ANODE BASKET
830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 7 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 8 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 9
PP TANKS PP BARRELS PP BAG FILTERS


OUR FACTORY

830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 10 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 11 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 12
ENGINEER OFFICE TOOLING DEPARTMENT MACHING 1
830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 13 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 14 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 15
MACHING 2 MACHING 3 MACHING 4
830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 16 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 17 830*185*40mm Plate Type PTFE Immersion Heater For Photovoltaic Equipment 18


Company Advantage

For more than ten years, our company has specialized in the research and development and production of PCB and FPC electroplating equipment, electric heaters, cold heat exchangers, and coating on the surface of electroplating equipment. We have collected advanced technologies and processes at home and abroad for many years. With the practice and experience in the PCB industry, the quality, stability and reliability of the products are among the world's leading positions. Our company has passed ISO9001: 2008 quality management system certification and CQC: CE certification, is in line with the world, implements scientific management, and implements international quality standards.
