Square Coil Bottom PTFE Immersion Heater , 3KW Immersion Heater

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T006
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month
Detail Information
Applicable Industries: Electroplating Industry Installation Method: Over The Side Of Tank
Usage: Most Aqueous Acid, Alkaline Solutions Certification: ISO9001 CE
Product Name: Single Tubular PTFE-sheathed Square Coil Bottom Electric Immersion Heater Warranty: 1 Year
Material: PTFE Tube+SS Heating Element Application: Heating The Chemical Solutions
Shape: L-shaped Square Coils
High Light:

3kw PTFE Immersion Heater

,

Square Coil Bottom PTFE Immersion Heater

,

3kw immersion heater


Product Description

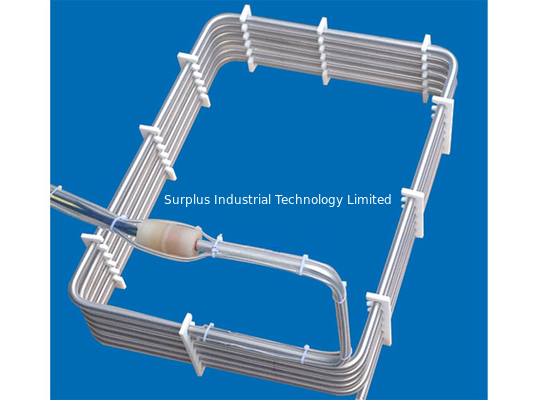

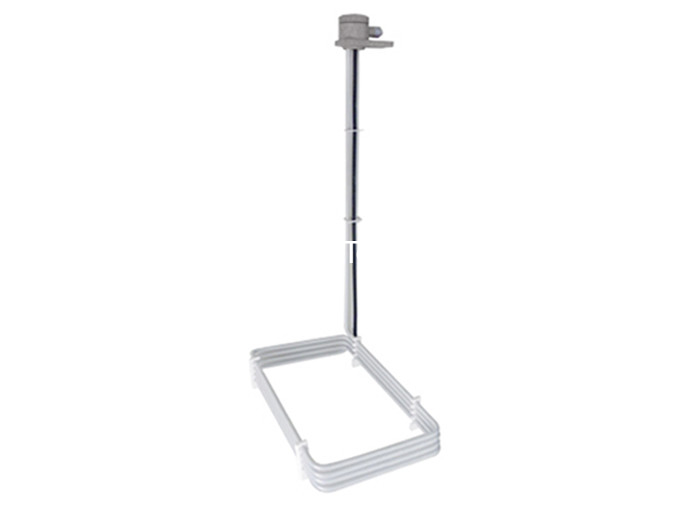

Single Tubular PTFE-sheathed Square Coil Bottom Electric Immersion Heater



Referential Specification List
Power(W) Voltage(V) Hot Zone (MM) Vertical Cold Zone(MM)
3000 220/380 300*300*60 Up to client's request
4000 220/380 400*400*60 Up to client's request
5000 220/380 500*500*60 Up to client's request
** Single phase only.
**Can be customized according to customer requirements.



FEATURES:



1. PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

Low watt density design 10 watts/square inch (1.5w/cm²).

4 foot (1.2m) continuous fluoropolymer (PTFE) cable leading to a vapor resistant terminal enclosure and 3 ft (.9m) flexible PVC liquid tight conduit.

Grounded internal metal element and built in thermal protector.



2. SPECIFICATIONS

500 - 6000 watts

120 to 600 volts



3. OPTIONS AVAILABLE (CONSULT FACTORY)

Resettable thermal protectors

Polypropylene guards (sold separately)

Custom configurations and lengths

Custom wire and conduit lengths

We recommend temperature controls for use with this immersion heater.


FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
