Single Phase 2000W PTFE Immersion Heater For Electroplating Tanks

China Surplus Industrial Technology Limited certification
The heaters and the rectifier working great!

—— David

I'm Online Chat Now

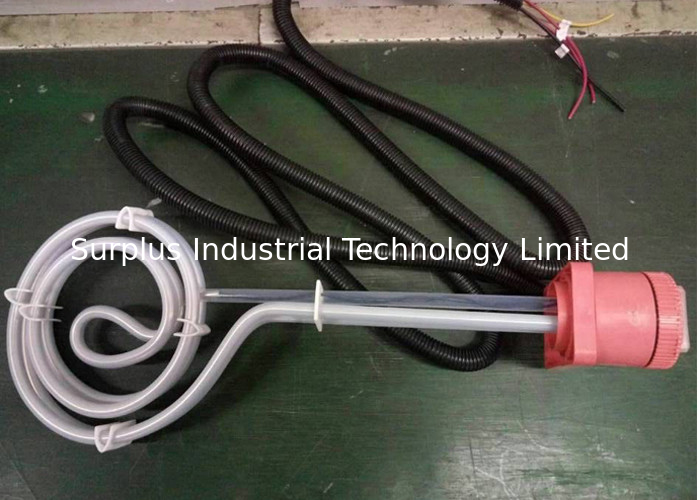

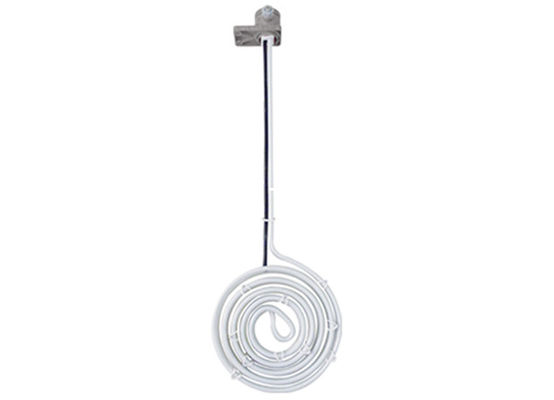

Single Phase 2000W PTFE Immersion Heater For Electroplating Tanks

Single Phase 2000W PTFE Immersion Heater For Electroplating Tanks
Single Phase 2000W PTFE Immersion Heater For Electroplating Tanks
video play

Large Image :  Single Phase 2000W PTFE Immersion Heater For Electroplating Tanks

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: T004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pcs per month
Detailed Product Description
Power Source: Electric Dimension(L*W*H): Single Phase
Voltage: 120-600V Certification: ISO9001 CE
Product Name: Round Type PTFE Electric Industrial Immersion Heaters For Electroplating Tanks Warranty: 1 Year
Material: Inside Sus316 Tube,outside Cover PTFE Tubes Application: Heating The Chemical Liquid, Process Heater
Shape: L-shaped
Highlight:

2000W PTFE Immersion Heater

,

Single Phase PTFE Immersion Heater

,

2000W single phase water heater

Round Type PTFE Electric Industrial Immersion Heaters For Electroplating Tanks

Referential Specification List

Power(W) Voltage(V) Hot Zone maximum
Outer Diameter (MM)
Vertical cold zone(MM)
2000 220/380 250 250
3000 220/380 280 300
4000 220/380 300 330
5000 220/380 350 350

Product Descriptions:

1. It is made of stainless steel (SUS316 or SUS304) jackied with DuPont PTFE/PFA tube, which is resistant to erosion and applicable to heat in various erosive liquid.

2. Designing each heater with low surface power, which insures service life of the heater.

3. Attention should be paid on the installation location of each heater in order to avoid any scraping. Users are suggested to prevent solid contents sinking on the surface of heater.

4. It is not applicable to heat in over-sticky liquid because poor heat dissipation will influence the service life of the heaters.

5. All heaters are matched with overheat protection switch or PT100 heat detector so as to insure the service life and security of their accessories.

6. As (PTFE) material has excellent chemical corrosion resistance, it is widely used in gold plating, copper plating, nickel plating of oxidizing acid and various chemical corrosive liquids.

7. We are able to design a wide range of styles, such as, "L" shape, "U" shape, "W" shape, coil shape, combination style and so on.

8. All heaters have passed the CE certification of EU market.


FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
