Product Details:
Payment & Shipping Terms:
|
| Name: | Titanium Basket Anode Mesh Basket For Water Treatment Case For Electroplating | Material: | Titanium |
|---|---|---|---|
| Application: | Electroplating,Surface Finishing,PCB Industry | Applicable Industries: | Surface Finishing,PCB And Semiconductor |
| Advantage: | High Efficiency Low Cost | ||
| High Light: | Grade 1 titanium anode baskets,ISO titanium anode baskets,ISO platinum coated titanium electrodes |
||

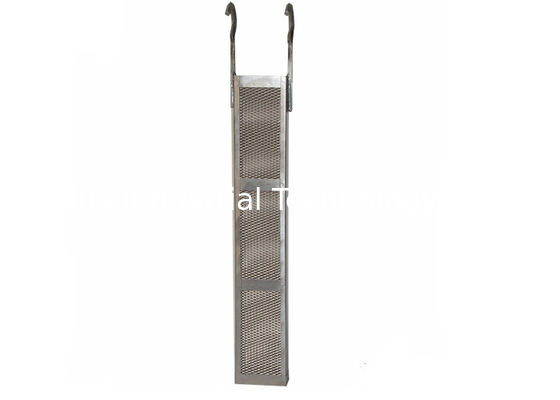

Titanium Basket Anode Mesh Basket For Water Treatment Case For Electroplating
Construction
Our anode baskets are made from Grade 1 titanium - a commercially pure quality which gives good resistance to most plating solutions.
The sides and base of our anode baskets are made from a solid sheet and the hooks are argon arc welded to ensure good electrical conductivity.
Mesh Size
Basket Sizes
A Dimension: 6" (150mm), 8" (200mm), 10" (250mm) or 12" (300mm)
B Dimension: 1" (25 mm), 1.5" (38mm), 2" (50mm)
C Dimension: 12" (300mm), 18" (450mm), 24" (600mm), 30" (750mm), 36" (900mm), 42" (1050mm) or 48" (1200mm)
Hooks
5" is standard, although greater lengths can be supplied by special order.
The hooks are bent on the edge for greater strength and fabricated with ½ x ¼" section.
For baskets 36" and over, heavier hooks are used (¾ x ¼").
Variations Available
Anode baskets can be made in all grades of titanium depending on the application.
For very corrosive situations, Grade 7 palladium stabilized alloy 260 is recommended.
Larger, non-standard sizes and round baskets are also available.
Pole Anode Bags
These are available in the following dimensions:-
Width: 4, 5 or 6 inches
Length: 12, 15, 18, 21, 24, 27, 30, 33, 36, 42, 48 or 52 inches
Basket Anode Bags
Available in a choice of the following measurements:-
Width: 6, 8, 10 or 12 inches
Depth: 1, 1.5 or 2 inches
Height: 12, 15, 18, 21, 24, 30, 36, 42 or 48 inches
FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
