Round Gr2 Titanium Anode , Mmo Titanium Mesh Anode For Anodizing

Titanium Basket And MMO Mesh Anode Gr2 Titanium Electroplating Baskets For Anodizing

Anode baskets are built to the highest standards in the industry, and are backed by a five-year warranty on workmanship. As one of the largest stocking manufacturers of raw material, we are pleased to provide customers with fast turnaround. If stock is not immediately available, we will design, build and ship custom anode baskets in 10 Days – wherever you need them.

If your anode basket requirements call for other than standard configurations, consult with us for alternatives and custom basket possibilities.

Our extensive history in custom anode basket manufacturing gives you the ability to work with directly with our equipment experts to create the exact configuration you’re looking for.

Talk with Us. Together we’ll find just the answer to your basket dilemma.

Considerations for Basket Sizing:

Baskets should be 2″ to 4″ shorter than the longest piece of work.
Baskets should be 1″ above the solution level.
Hook length is measured from the top of anode bar to 1″ above the solution level.
Quantities for rectangular baskets should be three (3) 2 ½” x 6″ baskets for every two feet above the bar.

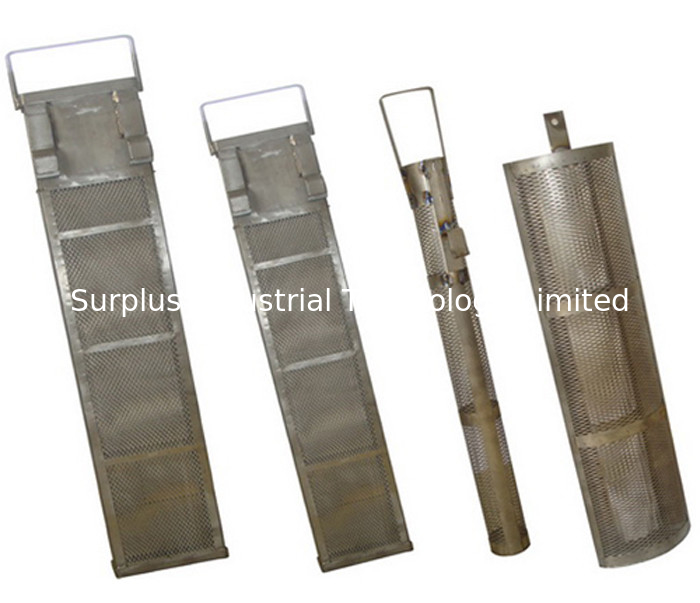

Sizing and Styles:

Rectangular Baskets: 2-1/2” x 6″
– Standard Stock Lengths include 18″, 24″, 30″, 36″. Other lengths are built to order.

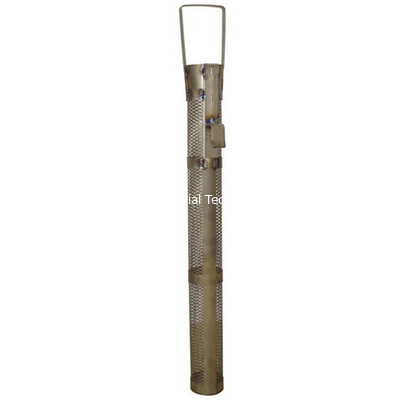

Round Baskets: 2 1/2″ Diameter x Length
– Standard Stock Lengths include 18″, 24″, 30″, and 36″. Other lengths are built to order.

BASKET AMPERAGE & ANODE HOOKS

Rectangular Baskets are standard with 50 AMPS/Basket Double Contact Hooks. Higher Amperage is available (i.e., 100 Amps, 150 Amps and 200 Plus Amps).

To determine the AMPS needed per basket, please use the following formula:

AMPS needed per Basket =

Total AMPS of TANK

Total # of Baskets

Amperage Rating Per Anode Hook:

25AMP = 1/8″ x 1″ Double Contact Hook or 3/8″ Square Bar Hook
50AMP = 1/4″ x 1″ Double Contact Hook or 1/2″ Square Bar Hook
75AMP = 3/8″ x 1″ Double Contact Hook or 5/8″ Square Bar Hook
100AMP = 1/2″ x 1″ Double Contact Hook or 3/4″ Square Bar Hook

Normal Application:

Inverted “V” Lift Hooks
Inverted “U” Hooks
“T” Handle Lift Hooks
Reverse Lift Hooks for easier access in lifting baskets
Submergible Hooks
Loading Chutes for easier anode loading
Mesh on 4 sides of basket for greater anode to cathode ratio

For Heavy Duty applications, Precise Heater offers the following anode basket options:

Heavier hooks for strength and current carrying capabilities
Ti Clad Copper Hooks for higher amperage rating
Thicker mesh material to minimize bulging of basket
Thicker side channel construction

Mesh Selection & Anode Quantities

Three Mesh Types Available: Perforated, Mini-Expanded and Poly Propylene

Perforated:

½” Diameter on 11/16″ staggered centers
50% mesh open area
Mini-Expanded:

3/16″ SWD x 1/2″ LWD
65% mesh open area
Perforated Poly Propylene:

1/4″ Diameter on 3/8″ staggered centers
40% Mesh Open Area

Examples – Quantities of Anodes to Fill Baskets (lbs./inch of length):

Rectangular (2-1/2″ x 6″ x L)

Nickel Buttons: 3 lbs.
Copper Chunks: 2-1/2 lbs.
2″ Copper Balls: 2 lbs.
Round (2-1/2″ Dia. x XL)

Nickel Buttons: .80 lbs.
Copper Chunks: .75 lbs
2″ Copper Balls: 625 lbs.

FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
