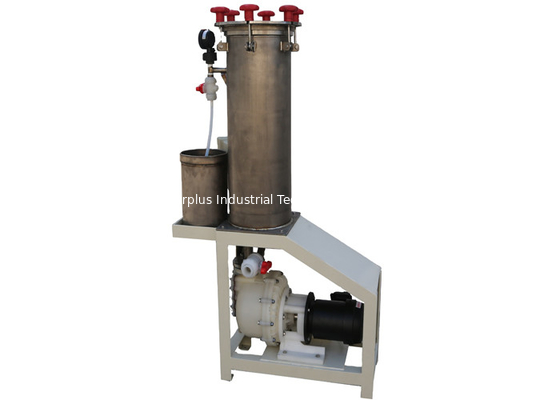

White ISO9001 80L/Min PP Bag Filter Housing For Metal Finishing

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: 003
Minimum Order Quantity: 1pcs
Price: according the dimension
Packaging Details: wooden case
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union
Supply Ability: 200pcs per month
Detail Information
Name: Pump Filters Filtration Systems Chemical Duty Chemical Pumps Application: Liquid Filtration
Micron Rating: 0.5-200 Filter Type: Bag
Housing Material: PDVF
High Light:

80L/min PP Bag Filter Housing

,

ISO9001 PP Bag Filter Housing

,

ISO9001 pvc bag filter housing


Product Description

Pump Filters Filtration Systems Chemical Duty Chemical Pumps



A: Features

As The Pure Nickel or Pure Copper or Pure Gold Production Plating Line, their chemical liquid has much crystal particles, if use the normal filter with magnetic pump, will make the pump burned while pumping the liquid. So Our SV Chemical Nickel Filter series can resolve this problem. It can stand with High Temp. Around 90 degree C, the pump can work without water, and will no problem while pumping any crystal particles.



1. The high precision and high quality filtering result, lead to the best plating quality.
2. The filter can resolve the crystal particles problem, to avoid any damage on pump. And it can work with above 90 degree C Temp.
3. Very easy replacement of filter cartridges. Easy installation the filter and pump.
4. Using the configuration protection switch or use the buckle switch.



B: Details

Model
PH-204
PH-206
PH-208
PH-212
PH-218
Filter material
B type
20" * 4
20" * 6
20" * 8
20" * 12
20" * 18
Applicable for plating bath(Ton)
0.8
1 - 2
1 - 3
2.5 - 4
4 - 6.5
Filtering capacity(L/min)
80
150
180-220
220
330 - 50
Filter area(m2)
B type
1
1.5
2
3
4.5
Outlet/Inlet Dimentions(inch)
1
1 - 1/2
1 - 1/2
2
2



C: We can do for factories, resellers,wholesale dealers or agents

1. 100% new and good quality guarantee,with 1 year guarantee of the machine;
2. Free design based on your request, non-standard design just more quantities requested ;
3. Free technical support and service ;
4. Choose the best shipping type for you, and good after-sale service...



Pump Filters - Filtration Systems | Chemical Duty - Chemical Pumps



D: Quality and Raw Materials

1. 100% pre-tested on each item before shippment;
2. Through the QC inspection many times;
3. Strict production operation ;
4. Environmental protection material;
5. Made from A grade PP or PVDF or CPVC material.



FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive

RELATED SPECIES

3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 0 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 1 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 2
PTFE IMMERSION HEATER PTC IMMERSION HEATER QUARTZ IMMERSION HEATER
3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 3 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 4 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 5
METAL HEAT EXCHANGERS (PFA) HEAT EXCHANGERS ANODE BASKET
3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 6 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 7 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 8
PP TANKS PP BARRELS PP BAG FILTERS


OUR FACTORY

3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 9 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 10 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 11
ENGINEER OFFICE TOOLING DEPARTMENT MACHING 1
3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 12 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 13 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 14
MACHING 2 MACHING 3 MACHING 4
3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 15 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 16 3 Element 316 Stainless Steel Electric Tubular Immersion Heater For Surface Finishing 17


Company Advantage
For more than ten years, our company has specialized in the research and development and production of PCB and FPC electroplating equipment, electric heaters, cold heat exchangers, and coating on the surface of electroplating equipment. We have collected advanced technologies and processes at home and abroad for many years. With the practice and experience in the PCB industry, the quality, stability and reliability of the products are among the world's leading positions. Our company has passed ISO9001: 2008 quality management system certification and CQC: CE certification, is in line with the world, implements scientific management, and implements international quality standards.
