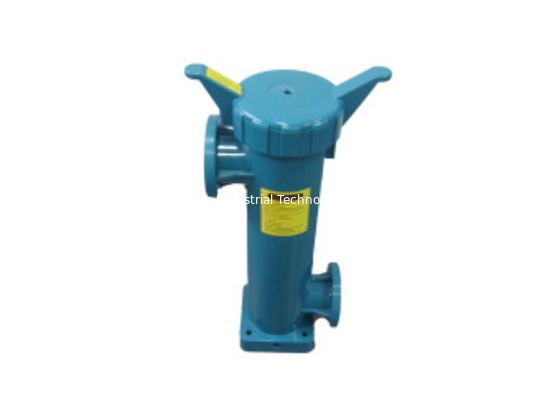

Corrosion Resistance 1.0MPa PP Bag Filter Housing For Electroplating

Corrosion Resistance 1.0MPa PP Bag Filter Housing  For Electroplating
Corrosion Resistance 1.0MPa PP Bag Filter Housing  For Electroplating Corrosion Resistance 1.0MPa PP Bag Filter Housing  For Electroplating

Large Image :  Corrosion Resistance 1.0MPa PP Bag Filter Housing For Electroplating

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: PPbagfilter002
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: according the dimension
Packaging Details: wooden case
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union
Supply Ability: 200pcs per month

Corrosion Resistance 1.0MPa PP Bag Filter Housing For Electroplating

Description
Name: Single Bag #4 #5 Filter Housing Corrosion Resistance Bag Filter For Electroplating Principle: Pressure Filtration
Performance: Precision Filtration, High Efficiency Filtration Application: Solid-liquid Separation
Design Pressure: 1.0 MPa Material: PPH
Operating Temperature: 90°C
High Light:

Corrosion Resistance PP Bag Filter Housing

,

1.0MPa PP Bag Filter Housing

,

Corrosion Resistance big blue bag filter

Single Bag #4 #5 Filter Housing Corrosion Resistance Bag Filter For Electroplating



Features:

1. The filter is formed in one piece, the structure is sturdy, safe and reliable, the installation is simple and convenient, there is no welding place, and it is economical and durable. PPH material can be used to filter most chemical liquids and has corrosion resistance to most chemicals.

2. The screw cap can be opened and closed freely, and the flange-type access interface avoids easy leakage and cracking. The filter bag and the filter barrel are in close contact, and any filter residue cannot penetrate the equipment.

3. It is convenient to replace the filter bag with different filtration accuracy.

4. Fluoroplastic rubber or silicone sealing ring, suitable for a wide range of acid-base and temperature liquids.

5. The polished barrel wall is convenient for manual cleaning or flushing at the appropriate location.

6. Four-hole mounting square base improves the ease of installation and strengthens the stability of the filter barrel.

7. The ring mouth of the filter bag is closely attached to the inner wall of the filter to effectively prevent the side leakage of the liquid.



Model specification:

Item No. WY
Model: DSL20:Bag filter
Material P1: PPH
Entrance and exit diameter DN40:1.5"



Parameter table

Model

Number

of Bag

Design pressure

Flow rate

(M2/H)

Filter area

(M2)

Filtration accuracy

(μm)

Inlet and outlet diameter

(MM)

Material

Operating temperature

(°C)

WY-DSL10-P1-440 1 1.0Mpa 10 0.12 0.5-500 40 PPH 90
WY-DSL20-P1-550 1 1.0Mpa 20 0.25 0.5-500 50 PPH 90
WY-DSL40-P1-265 1 1.0Mpa 40 0.45 0.25-500 65 PPH 90



Size #4 Bag Filter (MM) #5 Bag Filter (MM) #2 Bag Filter (MM) Corrosion Resistance 1.0MPa PP Bag Filter Housing  For Electroplating 0
A 610 805 1060
B 445 595 855
C 140 140 152
D 55 55 60
E 124 174 202
F 280 396 510
G JIS 1.5" JIS 2" JIS 2.5"
H 265 324 480
I 164 210 250
J 120 155 186
K 16 18 18





FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
