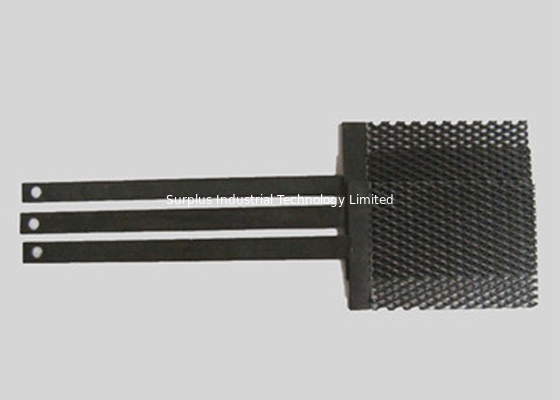

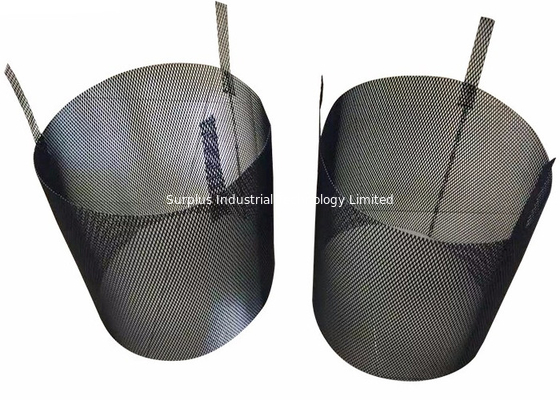

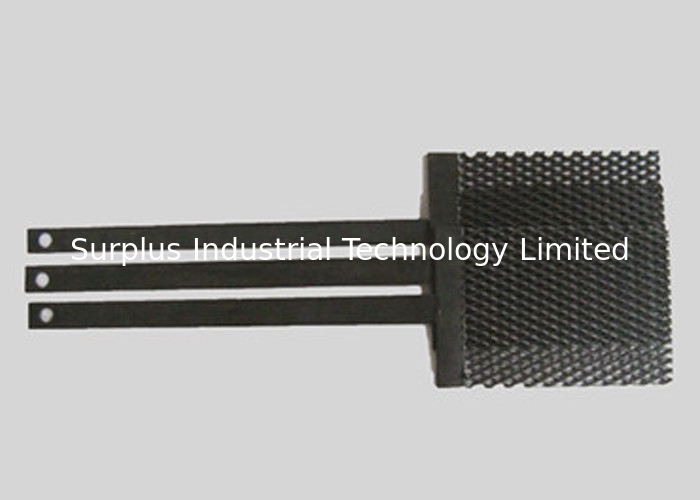

MMO Coating Ruthenium Iridium Coated Anode Baskets , Plating Basket

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: TA1002
Minimum Order Quantity: 1pcs
Price: according the dimension
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 200pcs per month
Detail Information
Name: MMo Coating Ruthenium-Iridium Coated Titanium Anode For Industrial Water Treatment Technique: Acid Washing
Coating: Rutheium Iridium Oxide Material: Grade 2 Pure Titanium
Surface Treatment: MMO Coated Application: Industry
Ti Content (%): 99.6%
High Light:

MMO Coating Anode Baskets

,

Ruthenium Iridium Coated Anode Baskets

,

MMO Coating plating basket


Product Description

MMo Coating Ruthenium-Iridium Coated Titanium Anode For Industrial Water Treatment



Ruthenium-Iridium coated Titanium Anodes are a type of mixed-metal oxide (MMO) anode used in electroplating, water treatment, and other electronic applications. Ruthenium-Iridium coated Titanium Anodes are generally immediately available in most volumes and can be fabricated in forms such as sheet, mesh, perforated plate, rod, or wire.We can produce most materials in high purity andultra high purity (up to 99.99999%) forms and follows applicableASTM testing standards; a range of grades are available including Mil Spec (military grade), ACS, Reagent and Technical Grade, Food, Agricultural and Pharmaceutical Grade, Optical Grade, USP andEP/BP (European Pharmacopoeia/British Pharmacopoeia). We can also produce materials to custom specifications by request, in addition tocustom compositions for commercial and research applications and new proprietary technologies. Typical and custom packaging is available, as is additional research, technical and safety (MSDS) data. Please contact us above for information on specifications, lead time and pricing.



Material Gr1 titanium as substrate, Ruthenium-Iridium oxide as coating
Coating Thickness 8~12micron
Parameter

1. Current density≤2000A/M2

2. Temperature<60°C

3. PH 0.1~14

4. Max content of Fluoride ion is 200PPM

Dimension & Shape

1. Plate/Tube/Rod/Mesh shape, different dimension is available

2. or according to client's drawing

Advantages

1. Effective and environmental

2. High current efficiency

3. High anti-corrosion property

4. Long working life

5. Keep the operating voltage stably

6. Small size & light weight

7. Repetitive titanium matrix. Etc.

Applications

1. Water ionizer or water electrolysis

*Making alkaline and acidic water

2. Waste water treatment

*Organic sewage treatment, *Chemical sewage treatment,

*Pesticide sewage treatment, *Drinking water disinfection,

*Bleaching & dyeing, *Swimming pool

*Domestic sewage treatment, *Hospital sewage treatment,

*Food industry disinfection etc.

3. Sodium Hypochlorite Generator & Chlorinator

*Swimming pool water treatment

*Water sterilization & water purification,

*Anti-fouling,etc

4. Sea water electrolysis or Electrodialysis

*Desalination, *Material recycling in the waste water,

*Paper making, *Chemical, medical industry,

*Light industry, *Metallurgy,

*Making fresh water, etc.

5. Chlor-Alkali Industry

*Caustic soda and chlorine production



Application areas:



Chlorate industry produces caustic soda, swimming pool disinfection, sodium hypochlorite production, sea water electrolysis, industrial water treatment, sewage treatment and other industries



Advantage:

1. The anode size is stable, the electrode spacing does not change during the electrolysis process, which can ensure that the electrolysis operation is carried out under the condition of stable cell voltage

2. Low working voltage, low power consumption, high current efficiency

3. It can overcome the dissolution problem of graphite anode and lead anode, avoid contamination of electrolyte and cathode products, and improve product quality

4. Strong corrosion resistance, can work in many corrosive electrolytic media with special requirements, long working life of titanium anode

5. The electrode is light in weight, which can reduce labor intensity, and the base titanium material can be recycled



FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.


Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.


Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.


Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.


Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.


Q: How late can you ship?
A: Normally 7 days after comfirmed the order.


PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
