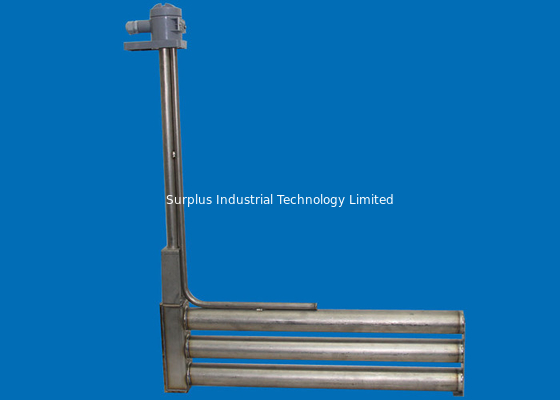

3 Element Stacked Type L Shaped Titanium Immersion Heater 480V 3P 36KW

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001 CE
Model Number: Ti006
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 pcs per month
Detail Information
Name: 480V 3P 36KW Titanium 3 Element Stacked Type L-Shaped Over The Side Immersion Heater Material: Titanium
Application: Heating Acid Solution Tube: 3 Tubes Stacked Type
Shape: L-shaped Cable: 2 Meters Standard
Tube Diameter: 50mm Bottom Hot Zone: 1600mm
Vertical Length: 1200mm
High Light:

3 Element Titanium Immersion Heater

,

L Shaped Titanium Immersion Heater

,

Stacked Type Over The Side Immersion Heater


Product Description

480V 3P 36KW Titanium 3 Element Stacked Type L-Shaped Over the Side Immersion Heater



Item

480V 3P 36KW Titanium 3 Element Stacked Type L-Shaped

Over the Side Immersion Heater

Material Titanium
Voltage 480V 3Phase
Power 36KW
Bottom Hot Zone 1600mm
Vertical Length 1200mm
Tube Diameter 50mm
Tube numbers 3 Element Stacked Type
Thermal Protection 95° or 105 °,Or PT100 temperature sensor
  Can do as customer's requirement.



Product features

1. It is made of titanium, zirconium, SUS304, SUS316 stainless steel seamless pipes, and the shape is divided into vertical and bottom heating "L" and "Z" shapes.

2. According to the installation position, the nature of the chemical liquid, and the deposition characteristics of solid substances in the liquid, the surface power of the heating tube is designed to determine the tube diameter. Common specifications for pipe diameters are: ø11mm, ø17mm, ø25mm, ø30mm, ø32mm, ø45mm, ø50mm.

3. The ø11mm, ø17mm tube is a shrink-tube type electric heater with liquid heating. The surface power of the heating tube is 4W/Cm2. It is suitable for liquid heating with good fluidity and less solid deposition. After cooling, the liquid will not precipitate crystals on the surface of the electric heater.

4. ø45mm pipe diameter series products adopt low surface productivity design, good durability, especially suitable for horizontal heating on circuit boards.

5. The voltage is 120V single-phase, 220V, 380V, 220V three-phase, 380V three-phase, and the power ranges from 0.5KW to 140KW.

6. All heaters can be used with over-temperature protection switch or temperature probe.

7. All heaters adopt international inspection standards to ensure the safety of electrical performance. Good grounding and the number of squares of wires that are absolutely sufficient, plus the use of flame-retardant materials for wires and sheaths, ensure absolute safety! 8. Dimensions, installation methods, voltage and power, etc. can all be made according to customer requirements.



FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.


PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
