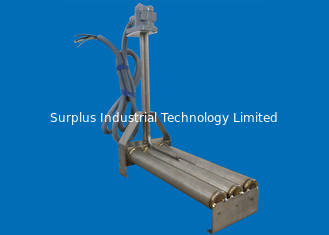

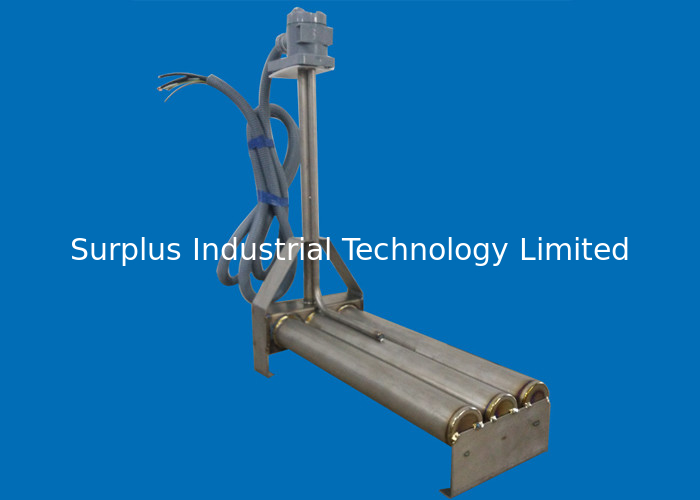

24KW 3 Tubes Titanium Immersion Heater For Nitric Acid Solution

24KW 3 Tubes Titanium Immersion Heater For Nitric Acid Solution
24KW 3 Tubes Titanium Immersion Heater For Nitric Acid Solution

Large Image :  24KW 3 Tubes Titanium Immersion Heater For Nitric Acid Solution

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001 CE
Model Number: Ti005
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 pcs per month

24KW 3 Tubes Titanium Immersion Heater For Nitric Acid Solution

Description
Name: 380V 3P 24KW Over The Side L-Shaped Bottom Triple Titanium Electric Immersion Heaters Material: Titanium
Application: Heating Water, Nitric Acid Solution And Acid Solution Tube: 3 Tubes
Shape: L-shaped Cable: 2 Meters Standard
Tube Diameter: 50mm Vertical Length: Can Be Longer Such As 2 Meters
High Light:

3 Tubes Titanium Immersion Heater

,

24KW Titanium Immersion Heater

,

24KW Bottom Immersion Heater

380V 3P 24KW Over the Side L-Shaped Bottom Triple Titanium Electric Immersion Heaters



Specification:380V 3P 24kw

Material: Titanium

Bottom Hot zone: 1200MM

Tube diameter: 50MM

With Thermal Protection

Vertical length: 1000 MM Standard,other size available

** Three phases standard, single phase available.



Voltage and Power can do other size.

The vertical length can be longer or shorter.



High-quality high-temperature resistance alloy wires are evenly distributed in the tube, with a fast heating speed, a service life of up to 10,000 hours, and a power-saving function, which can save energy by 20% compared with ordinary heaters of the same power.

All combined Titanium heaters can be used with 95℃ or 105℃ commonly used over-temperature protection switches, or equipped with PT100 temperature probes.

The maintenance is simple and easy to use. It conforms to the international electrical inspection standards, and the quality is safe and reliable. Use environment: Various electroplating corrosion liquids vary due to different materials.

Specification design: You can refer to common specifications, or design various shapes, specifications, and processes according to customer requirements.



FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.


PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
