Name: | 220V Single Phase 5kw L-Shaped Titanium Electric Process Over The Side Immersion Heater | Material: | Titanium |
---|---|---|---|
Application: | Chemical Industry | Tube: | Single Tube |
Shape: | L-Shaped | Cable: | 2 Meters Standard |
Bottom Tube Diameter: | 50mm | Vertical Tube Diameter: | 25mm |
Highlight: | 5KW electric immersion water heater,gle Phase electric immersion water heater,gle Phase 5kw immersion heater |

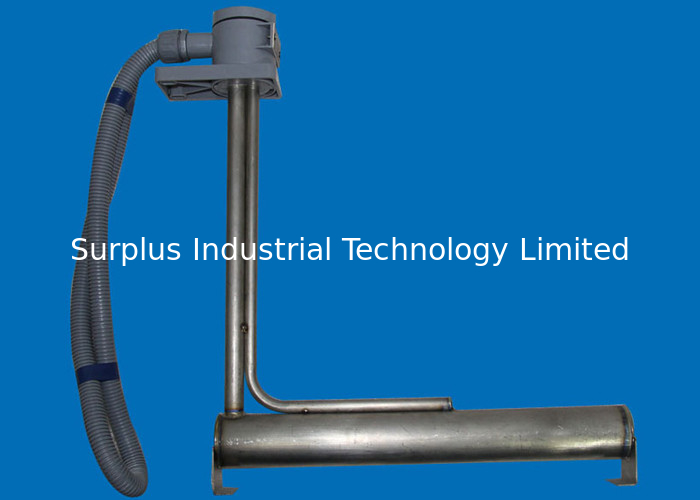

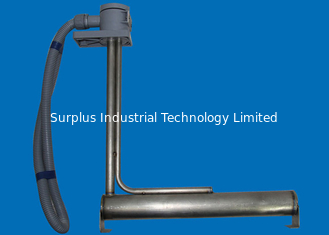

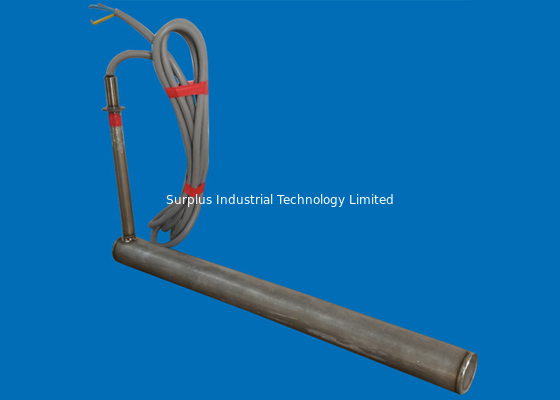

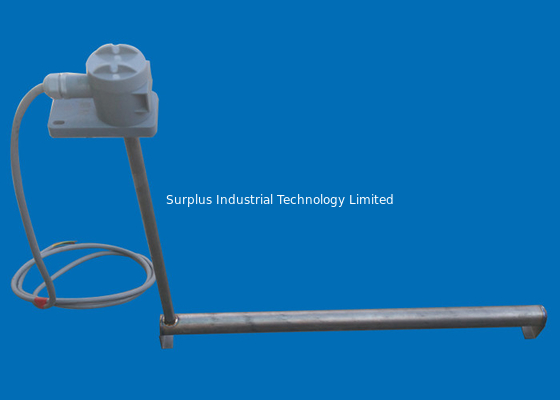

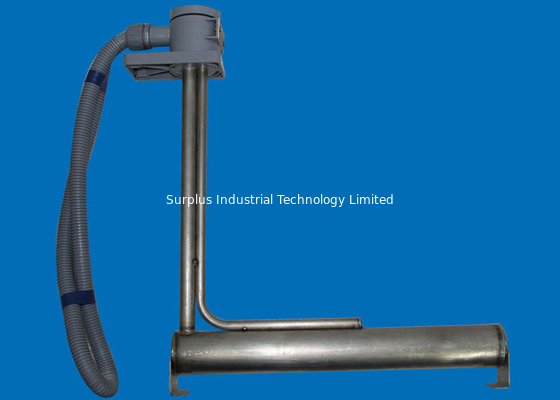

220V Single Phase 5kw L-Shaped Titanium Electric Process Over The Side Immersion Heater
Specification:220V 1P 5kw
Material: Titanium
Bottom Hot zone: 750MM
Bottom Tube Diameter: 50MM
Vertical Tube Diameter:25MM
With Thermal Protection
Vertical length: 800 MM Standard,other size can do
It can do other specification,
Voltage and Power can do other size.
Three Phase is available
The vertical length can be longer or shorter.
Tube diameter can do: 11mm,16mm,19mm,25mm,38mm,45mm.
SUPERIOR CHEMICAL RESISTANCE:
Materials available for use in most aqueous alkaline solutions, plating solutions and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.
RUGGED CONSTRUCTION:
Heavy wall metal sheaths and screw plug available in steel, 304 stainless steel, 316 stainless steel and titanium.
OUTSTANDING PERFORMANCE:
Low watt densities of 18 watts per square inch (2.8 w/cm2) extend service life.
FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.
PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
RELATED SPECIES
![]() |
![]() |
![]() |
PTFE IMMERSION HEATER | PTC IMMERSION HEATER | QUARTZ IMMERSION HEATER |
![]() |
![]() |
![]() |
METAL HEAT EXCHANGERS | (PFA) HEAT EXCHANGERS | ANODE BASKET |
![]() |
![]() |
![]() |
PP TANKS | PP BARRELS | PP BAG FILTERS |
OUR FACTORY
![]() |
![]() |
![]() |
ENGINEER OFFICE | TOOLING DEPARTMENT | MACHING 1 |
![]() |
![]() |
![]() |
MACHING 2 | MACHING 3 | MACHING 4 |
![]() |
![]() |
![]() |
Company Advantage
For more than ten years, our company has specialized in the research and development and production of PCB and FPC electroplating equipment, electric heaters, cold heat exchangers, and coating on the surface of electroplating equipment. We have collected advanced technologies and processes at home and abroad for many years. With the practice and experience in the PCB industry, the quality, stability and reliability of the products are among the world's leading positions. Our company has passed ISO9001: 2008 quality management system certification and CQC: CE certification, is in line with the world, implements scientific management, and implements international quality standards.
