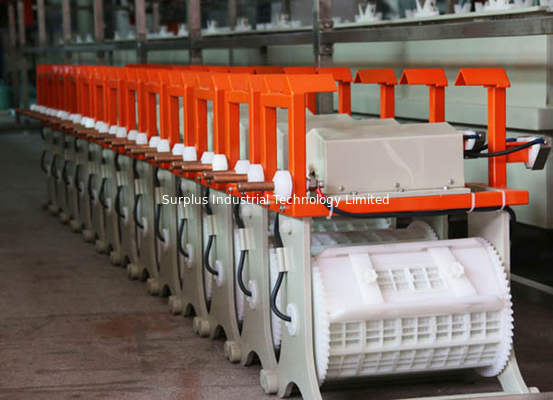

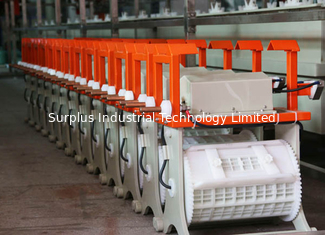

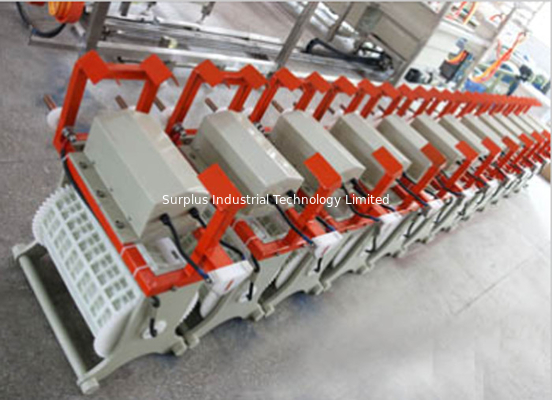

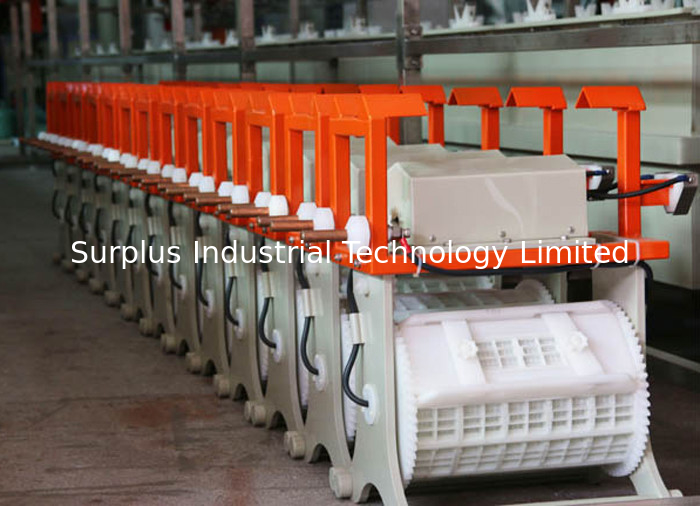

400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor

400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor
400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor
400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor

Large Image :  400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor

Product Details:
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: Barrel-002
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Price according to the detail size
Packaging Details: wooden case or can be customized
Delivery Time: 7-15 working days
Payment Terms: T/T,Western Union
Supply Ability: 50pcs per month

400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor

Description
Product Name: PP Electroplating Barrel With Gear And Speed Regulating Motor For Automatic Barrel Plating Line Material: PP
Application: Nickel Plating Plating Process: Chrome Zinc Nickle Plating
After-sales Service: Video Technical Support, Online Support Diameter: 400
Length: 800 Fittiings: Gear,Speed Regulating Motor,PP Precision Perforated Plate
MOQ: 1 Set
High Light:

PP Electroplating Barrel

,

400mm Electroplating Barrel

,

400mm plating equipment

PP Electroplating Barrel With Gear And Speed Regulating Motor For Automatic Barrel Plating Line



Features Of Automatic Line Electroplating Barrel:

1. Roller material: made of PP precision mesh plate, gear PP plate made of CNC processing

2. Bracket: made of PP board and SUS304 angle steel

3. Equipped with a speed-regulating motor, sealed to install the upper side of the roller bracket

4. Applicable electroplating equipment: automatic barrel plating electroplating equipment line

5. Scope of application: widely used in barrel plating of gold, silver, palladium, rhodium, nickel, copper, zinc, etc., To solve chan'p that is not suitable for rack plating.



Parameters Table



Item Name PP Electroplating Barrel
Material PP
Application Electroplating lines
Diameter 400mm
Length 800mm
Height 900mm
Fitting Can equit with PP tank,V Shape,Anode rod,cathode,Motor



PP Electroplating Barrel technology



Barrel plating is where the workpiece is electroplated in the Barrel. The biggest difference between it and the hang-plated parts is that use of a roller, which allows the workpiece to be plated during continuous tumbling.The barrel is generally hexagonal and placed horizontally. One side of the barrel is open, and the workpiece is loaded into the drum from the opening during electroplating.Roller material: PP board, mesh board, acrylic board, stainless steel board, etc.During electroplating, the current is conducted between the workpiece and the anode, The renewal of the solution inside and outside the barrel and exhaust gas all pass through these small holes,The cathode conductive device of the barrel is designed with copper wire or copper rod, which is naturally connected with the cathode conductive device under the gravity of the workpiece in the barrel.The efficiency of barrel plating production and the quality of the coating are all related to the roller structure, size, size, speed, conduction mode, opening rate and other factors. Therefore, the barrel is customized according to the different needs of different customers.



Buying Guides


We are highly appreciate if you can provide the details information.

1. The productivity: xx per hour, xx hours per day.

2. The size for your product: length:xx, width:xx, height:xx, diameter:xx.

3. Your plating process:

4. The size of tank you need: length:xx, width:xx, height:xx.

5. The size of barrel you need: length:xx, aperture:xx.

6. Equipment Model: (Automatic, semi-auto or manual):

7. The power of your country: voltage:xx, current:xx, single phase/diphase/triphase


Packing & Shipping
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive

FAQ

1. How can I get an offer?

You can send your drawing with technology requirements and mark your purchase quantity of the product you need.It is much better if you could offer the usage information about products.

We will comfirm the most suitable material and quote our best price to you in 24 hours.

2. Can you accept OEM & ODM?

Yes,we can produce the products according to your demand and drawing.

3. What is your production lead-time for order?

Generally it takes 15-25 days for production.

4. What are your payment terms?

In generally,we quote EXW price+shipping cost,payment 50% deposit by T/T in advance,50% balance paid before shipment.

If the account is small ,so you can pay via Western Union.


Company Advantage:

1. Professional,Powerful, Precision Design

  • Factory scale: 18 years of experience in electroplating equipment manufacturing, with a production base of 5182 square meters, factory direct sales, reducing customer costs.
  • Processing equipment: 20 sets of bending machines, engraving machines, wire cutting machines, processing machine tools and other machinery to ensure the quality of customized equipment.
  • Customized production capacity: The annual production capacity of electroplating equipment can reach 24 sets, and the customized equipment can be supplied in a timely manner with strong strength.

2. Build a quality levee to meet the challenges of the century

  • Exquisite craftsmanship: simple and flexible operation, stable operation, easy to manage, low mechanical failure rate, high use efficiency
  • Superior quality: The equipment adopts materials from well-known brands in Japan, Taiwan and China to ensure stable and durable equipment quality
  • Strict quality inspection: repeated testing of equipment after on-site installation to ensure equipment stability and equipment quality


3. Focus on research and development for 18 years, master core technology

  • R&D team: Engineers have more than 18 years of experience in the electroplating industry, and continuously improve the quality of equipment to provide technical assurance
  • R&D strength: By increasing investment in science and technology, improving the level of R&D, now we have advanced technology R&D and design capabilities in the industry


4. Quality and Thoughtful Service

  • The engineer answers online, and the salesman's response time does not exceed 4 hours.
  • Quick quote



Related Product Show



1. Automatic Barrel plating production line

400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 0

2. Automatic rack plating production line

Application: large-scale surface treatment of metal parts such as machinery, automobiles, military industry,electronics and ABS

non-metal parts, suitable for zinc plating, chrome plating, nickel plating, copper plating and other processes.



400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 1

3. Precision roller

Application range:Small batch surface treatment of metal parts such as precision military electronics, suitable for nickel plating,

gold plating, tin plating, copper plating and other processes

400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 2



Related Project display

400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 3
400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 4
400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 5
400mm Diameter PP Electroplating Barrel With Gear And Speed Regulating Motor 6
