Conductive Copper Electroplating Accessories V Block For Electroplating Tank

Basic Information
Place of Origin: China
Brand Name: surplus
Certification: ISO9001
Model Number: CV002
Minimum Order Quantity: 5 PCS
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Detail Information
Item: V-Shaped Conductive Copper Head Copper Bus Bar For Electroplating Tank Material: Copper
Application: Electroplating Barrel Line Machine Equipment Molding: High Pressure Casting
Surface Treatment: Mirror Processing And Sandblasting Proofing Cycle: 1-3 Days
Usage: To Support And Conduct Electricity At The Edge Of The Electroplating Tank
High Light:

Copper Electroplating Accessories

,

Conductive Electroplating Accessories

,

Conductive V Block


Product Description

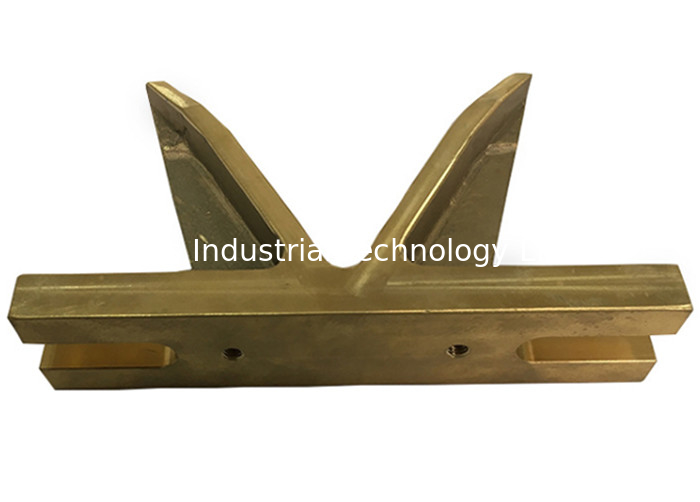

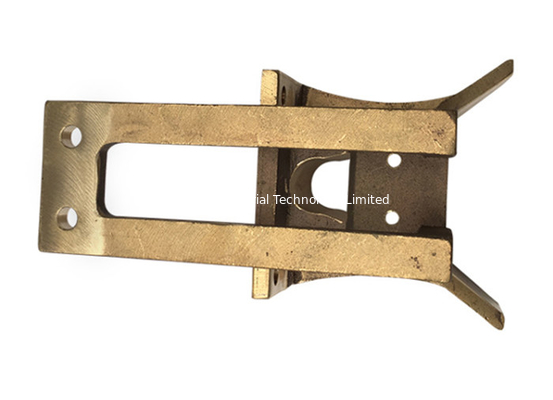

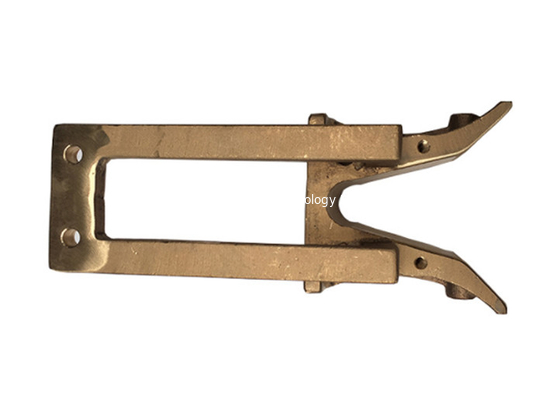

V-Shaped Conductive Copper Head Copper Bus Bar For Electroplating Tank



Our company specializes in the production of various accessories for electroplating equipment fittings, which can be produced according drawings or samples. Large quantity favorably, quality assurance.

The cathode conductive copper seat is an electroplating cathode conductive device, and its main function is to support and conduct electricity at the edge of the electroplating tank.

According to the current capacity, it is generally divided into copper V seat and water-cooled copper seat. Copper V seat is mainly used on some electroplated wires with relatively small current. If the current is slightly larger, you can choose to electroplated copper V seat. Water-cooled copper holders are mainly used in large-scale electroplating production lines with currents above 3000A. Because this kind of cathode conductive device is constantly cooled by water circulation when it is working, the normal temperature can be controlled at about 40°C.

On the side of the electroplating tank, the copper V seat, the sanded red copper V seat, the oxide conductive seat, the conductive seat, the copper horse seat, the tin bronze V seat, and the conductive copper V seat. The existing molds are basically suitable for assembly of all electroplating lines.

1. The appearance of the product has no burr and trachoma.

2. The raw material used in the product is electrolytic copper, with low impurity content, good electrical conductivity, and no heat generation.

3. Many years of production experience, team support, product quality is guaranteed.

The copper V seat and flying target heads we produce are widely used in various types of electroplating, oxidation, phosphating, and coating gantry rack plating equipment and gantry barrel plating equipment.





FAQ

1. How can I get an offer?

    You can send your drawing with technology requirements and mark your purchase quantity of the product you need.It is much better if you could offer the usage information about products.

    We will comfirm the most suitable material and quote our best price to you in 24 hours.



2. Can you accept OEM & ODM?

Yes,we can produce the products according to your demand and drawing.



3. What is your production lead-time for order?

Generally it takes 15-25 days for production.



4. What are your payment terms?

In generally,we quote EXW price+shipping cost,payment 50% deposit by T/T in advance,50% balance paid before shipment.

If the account is small ,so you can pay via Western Union.



Packing & Shipping



In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.



As for shipment,different ways have their own advantage and disadvantage:

By sea: the cheapest,suitable for large amounts,but take more time

By Air: faster, more convenient, expensive

By Express: more flexiable, door to door, expensive



Factory Equipment Display



Conductive Copper Electroplating Accessories V Block For Electroplating Tank 0

CNC Machine

Conductive Copper Electroplating Accessories V Block For Electroplating Tank 1

Precision lathe and milling machine processing equipment

Conductive Copper Electroplating Accessories V Block For Electroplating Tank 2

Precision lathe and milling machine processing equipment

Conductive Copper Electroplating Accessories V Block For Electroplating Tank 3

Automatic plastic bumping and rolling equipment
