Product Details:
|
| Name: | Automatic Gantry Barrel Plating Line (electronics) Electroplating Plating Equipment | Application: | Electronic Products,such As Chip Resistor,diode Andsimilar Shape Products |
|---|---|---|---|
| Electroplating Power Supply: | DC Power Supply | Type Of Plating: | Copper/nickel/tin Or Other Compound Plating |
| Type: | Automatic Or Semi-automatic Operations | Includes Accessories: | Automatic Crane And Manual-automatic Changeover Switch,the Crane Could Set With Liquid Collect Plate And Hanging Rotating De-watering Device |
| Material: | PP+stainless Steel | Control Method: | Fully Automatic PLC |
| High Light: | fully automatic PLC Electroplating Plant Equipment,silver Electroplating Plant Equipment,fully automatic PLC silver plating machine |
||

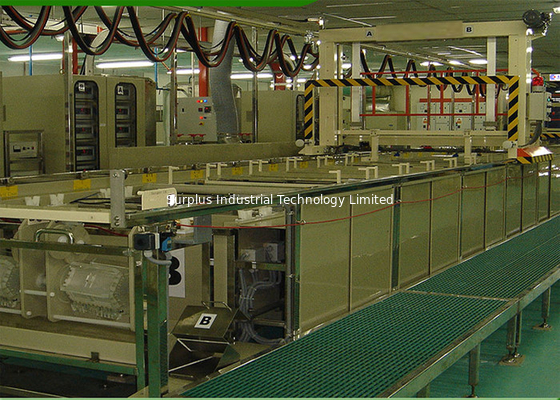

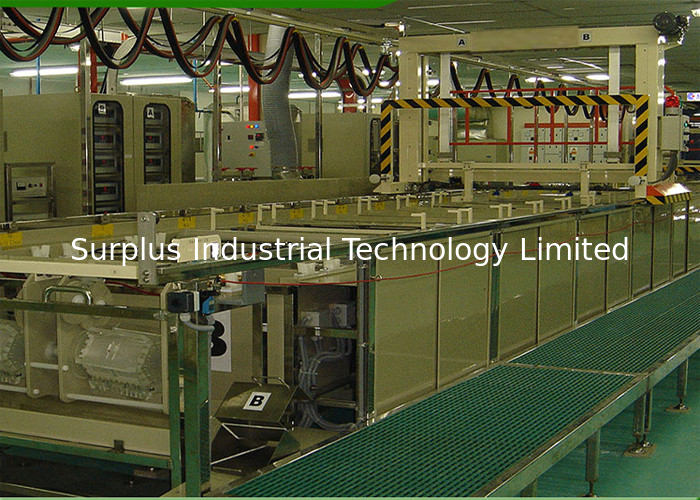

Automatic Gantry Barrel Plating Line (electronics) Electroplating Plating Equipment
1. Product Information
Applies for electronic products(such as chip resistor,diode andsimilar shape products).
Suitable for copper/nickel/tin or other compound plating.
Equipped with automatic crane and manual-automatic changeover switch,the crane could set with liquid collect plate and hanging rotating
de-watering device.
The plating process could be set with customized program according to requirement,multiple programs could be set and save at the same time,with human-machine interface.
Industrial control computer could be provided according to customer's need,which can collect and record the real-time plating parameters for customer to track the plating quality.
2. Characteristics
Electroplating Line body design gantry U-shaped barrel plating line.
Barrel plating is suitable for workpieces that cannot or are not suitable for plating due to factors such as shape, size, etc.
Compared with the early plating of small parts using rack plating or hanging basket plating, it saves labor, improves labor production efficiency, and greatly improves the surface quality of plated parts.
3. Technology
| Application | Barrel-plated zinc-nickel-chromium products, the smallest workpiece can reach 0.1mm needle-shaped small parts |
| Including Accessories | Equipped with PP precision mesh plate type drum, adjustable speed, equipped with flow barrel rotation and dripping device |
| Whole Line Designed | with U-shaped barrel plating production line |
|
Control Method |
fully automatic PLC program centralized control, open program operation is simple and flexible |
| Parameter | 6 gantry cranes,The material of Support bracket is SS41#+SUS304# |
4. Advantage
It is suitable for copper, nickel, chromium, zinc, phosphating, plastic electroplating and other advanced process requirements, and can meet various functional and decorative requirements in electroplating according to user needs. The whole line has reasonable structure, beautiful appearance and convenient operation. It can be designed for automatic and semi-automatic operations according to customer requirements. The fully automatic operating system controlled by the computer can be displayed on the screen with high stability.
Products Show

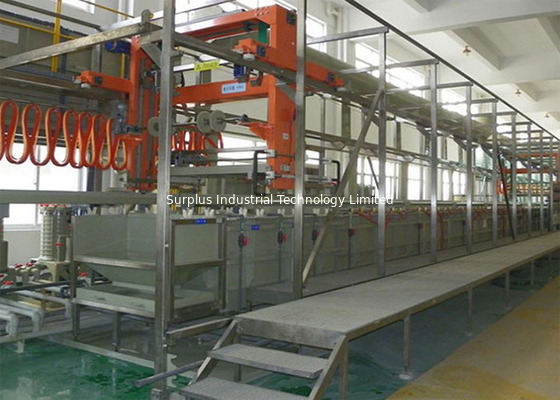

1. Automatic Barrel plating production line

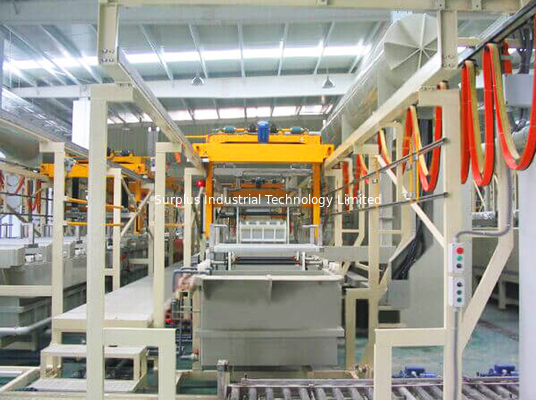

2. Automatic rack plating production line
Application: large-scale surface treatment of metal parts such as machinery, automobiles, military industry,electronics and ABS
non-metal parts, suitable for zinc plating, chrome plating, nickel plating, copper plating and other processes.
3. Precision roller
Application range:Small batch surface treatment of metal parts such as precision military electronics, suitable for nickel plating,
gold plating, tin plating, copper plating and other processes

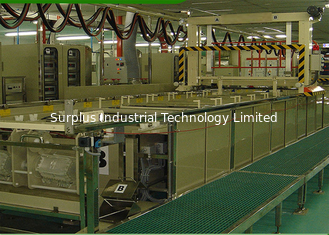

Project display
|
|
|
|
