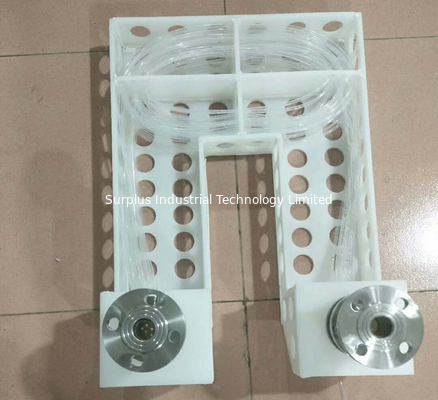

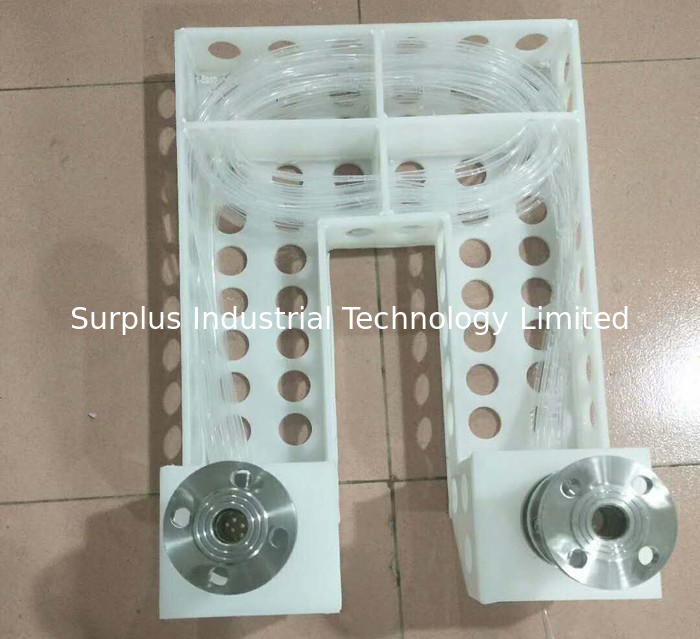

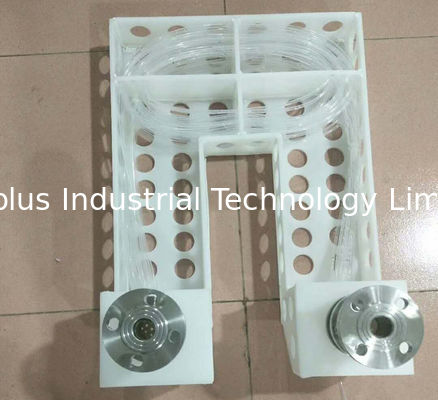

Heavy Duty Immersion Heat Exchanger , PFA Heat Exchanger For Saltwater

Heat exchangers of FEP/PFA - Coil Heat Exchangers & Immersion Heat Exchangers

For heating or cooling of most aqueous acid and alkaline solutions.

All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction.
Heavy duty CPVC mounting bracket.
2 to 4 inch thick perforated guard helps protect the coil from damage.
Heavy wall tubing improves circulation and minimizes pressure drop.All coils constructed of ½-inch (13mm) tubing Integral Flexible inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.
Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service.

PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI.
10 PSI minimum steam pressure required for operation.
Consult factory regarding pressure reduced applications.
Eliminates stray currents in the tank.
5.5 ft2 to 120 ft2 of exchange area standard.

NOTE: Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications.

Custom exchange area and size are available
